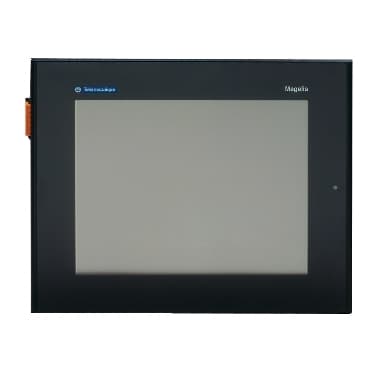

Schneider Electric XBTGT4230 Advanced Touchscreen Panel

Selling Points

1Advanced 7.5-inch STN LCD display with 4096 colors and 640 x 480 pixels VGA resolution.
2Powerful CPU RISC processor running at 266 MHz for fast and responsive performance.
3Versatile connectivity options including COM2 serial link RJ45 RS485 and Siemens MPI.
4Reliable data retention with 512 kB SRAM backup and lithium battery.
5Compact design with IP20 (rear) and IP65 (front) protection, suitable for various control panels and enclosure designs.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Range of Product	Harmony XBTGT	Product or Component Type	Advanced touchscreen panel
Display Type	Backlit colour STN LCD	Display colour	4096 colours
Display Resolution	640 x 480 pixels VGA	Display size	7.5 inch
Software Type	Configuration software	Software Designation	Vijeo Designer
Operating System	Harmony	Processor name	CPU RISC
Processor frequency	266 MHz	Memory description	512 KB SRAM back up of data lithium battery<br />32 MB flash EPROM application memory
Integrated connection type	RJ45 COM2 serial link RS485 <= 187.5 kbit/s Siemens MPI (187.5 kbits/s)<br /> male SUB-D 9 COM1 serial link RS232C/RS422/RS485 <= 115.2 kbits/s<br /> removable screw terminal block power supply<br /> RJ45 Ethernet TCP/IP<br />3 removable screw terminal block digital output<br /> removable screw terminal block audio output<br /> removable screw terminal block digital input<br /> USB type A master port (V1.1)	Resistance to electrostatic discharge	6 kV IEC 61000-4-2 level 3
cut-out dimensions	204.5 (+ 1/- 0) x 159.5 (+ 1/- 0) mm	Touch sensitive zone	1024 x 1024
Touch panel	Analogue	Backlight lifespan	54000 hours
Brightness	8 levels via touch panel	Contrast	8 levels via touch panel
Character font	Chinese (simplified Chinese)<br />ASCII (European characters)<br />Korean<br />Taiwanese (traditional Chinese)<br />Japanese (ANK, Kanji)	[Us] rated supply voltage	24 V DC
Supply	External source	Supply voltage limits	19.2…28.8 V
Inrush current	30 A	Power consumption in W	28 W
Local signalling	for normal operation or backlighting faulty 1 LED (green or orange)	Number of pages	Limited by internal memory capacity
Downloadable protocols	Telemecanique Modicon FIPWAY<br />Telemecanique Modicon Modbus Plus<br />Telemecanique Modicon Modbus TCP<br />Telemecanique Modicon Modbus<br />Mitsubishi Melsec third party protocols<br />Omron Sysmac third party protocols<br />Rockwell Automation Allen-Bradley third party protocols<br />Siemens Simatic third party protocols<br />Telemecanique Modicon Uni-TE	Realtime clock	Built-in
Data storage equipment	1 Compact Flash card >= 1 GB	Use of slot	For 1 fieldbus communication card (Device Net, Profibus DP)
Port Ethernet	10BASE-T/100BASE-TX	Product mounting	Flush mounting
Fixing Mode	By 4 screw clamps<br />By 4 spring clips	Front material	Aluminium alloy
Enclosure Material	PPT	marking	CE
Width	8.5 in (215 mm)	Height	6.7 in (170 mm)
Depth	2.4 in (60 mm)	Net Weight	4.0 lb(US) (1.8 kg)
Immunity to microbreaks	10 ms	Standards	EN 61131-2<br />UL 508<br />FCC Class A<br />CSA C22.2 No 14<br />UL 1604<br />IEC 61000-6-2
Product Certifications	C-tick<br />ATEX zone 2/22<br />cULus<br />CSA Class 1 Division 2 T4A<br />UL Class 1 Division 2 T5<br />UL Class 1 Division 2 T4A<br />CSA Class 1 Division 2 T5	Ambient Air Temperature for Operation	32…122 °F (0…50 °C)
Ambient Air Temperature for Storage	-4…140 °F (-20…60 °C)	Relative humidity	10…90 % without condensation
Operating altitude	< 6561.68 ft (2000 m)	IP degree of protection	IP20 IEC 60529 rear panel)<br />IP65 IEC 60529 front panel)
NEMA degree of protection	NEMA 4X front panel (indoor use)	Shock resistance	15 gn 11 ms IEC 60068-2-27
Vibration resistance	1 gn 9…150 Hz)IEC 60068-2-6<br />3.5 mm 5…9 Hz)IEC 60068-2-6	Resistance to electromagnetic fields	9.1 V/m (10 V/m) IEC 61000-4-3
Resistance to fast transients	2 kV IEC 61000-4-4 level 3

Specifications may be subject to change without notice
