Product Model

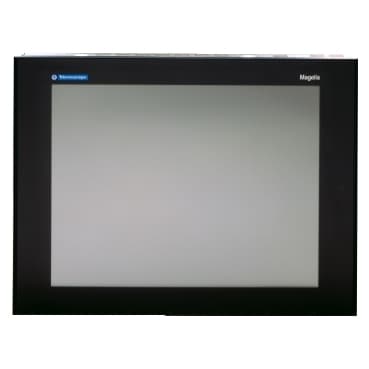

XBTGT7340
Selling Points
- 1High-resolution 1024 x 768 pixels XGA display for clear visualization.
- 2Backlit color TFT LCD with 65,536 colors for vibrant visuals.
- 3Accurate analog touchpad for versatile user interaction.
- 4Adjustable contrast and brightness settings for optimal viewing.
- 5Supports multiple windows with pop-up functionality and up to 40 fonts.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XBTGT | Product or Component Type | Advanced touchscreen panel |
Display Type | Backlit colour TFT LCD | Display colour | 65536 colours |
Display Resolution | 1024 x 768 pixels XGA | Display size | 15 inch |
Software Type | Configuration software | Software Designation | Vijeo Designer |
Operating System | Harmony | Processor name | CPU RISC |
Processor frequency | 266 MHz | Memory description | 512 KB SRAM back up of data lithium battery<br />32 MB flash EPROM application memory |
Integrated connection type | RJ45 COM2 serial link RS485 <= 187.5 kbit/s Siemens MPI (187.5 kbits/s)<br /> male SUB-D 9 COM1 serial link RS232C/RS422/RS485 <= 115.2 kbits/s<br /> removable screw terminal block power supply<br /> RJ45 Ethernet TCP/IP<br />3 removable screw terminal block digital output<br /> removable screw terminal block audio output<br /> removable screw terminal block digital input<br /> mini-jack audio input<br /> RCA composite video input (NTSC/PAL)<br />2 USB type A master port (V1.1) | Resistance to electrostatic discharge | 6 kV IEC 61000-4-2 level 3 |
cut-out dimensions | 383.5 (+ 1/- 0) x 282.5 (+ 1/- 0) mm | Touch sensitive zone | 1024 x 1024 |
Touch panel | Analogue | Backlight lifespan | 50000 hours |
Brightness | 8 levels via touch panel | Character font | Korean<br />Chinese (simplified Chinese)<br />Japanese (ANK, Kanji)<br />Taiwanese (traditional Chinese)<br />ASCII (European characters) |
[Us] rated supply voltage | 24 V DC | Supply | External source |
Supply voltage limits | 19.2…28.8 V | Inrush current | 30 A |
Power consumption in W | 42 W | Local signalling | for normal operation or backlighting faulty 1 LED (green or orange) |
Number of pages | Limited by internal memory capacity | Downloadable protocols | Telemecanique Modicon FIPWAY<br />Telemecanique Modicon Modbus Plus<br />Telemecanique Modicon Modbus TCP<br />Telemecanique Modicon Modbus<br />Mitsubishi Melsec third party protocols<br />Omron Sysmac third party protocols<br />Rockwell Automation Allen-Bradley third party protocols<br />Siemens Simatic third party protocols<br />Telemecanique Modicon Uni-TE |
Realtime clock | Built-in | Data storage equipment | 1 Compact Flash card >= 1 GB |
Use of slot | For 1 fieldbus communication card (Device Net, Profibus DP) | Port Ethernet | 10BASE-T/100BASE-TX |
Product mounting | Flush mounting | Fixing Mode | By 8 screw clamps<br />By 4 spring clips |
Front material | Aluminium alloy | Enclosure Material | Aluminium alloy |
marking | CE | Width | 15.6 in (395 mm) |
Height | 11.6 in (294 mm) | Depth | 2.4 in (60 mm) |
Net Weight | 12.3 lb(US) (5.6 kg) | Immunity to microbreaks | 10 ms |
Standards | CSA C22.2 No 14<br />UL 508<br />EN 61131-2<br />FCC Class A<br />UL 1604<br />IEC 61000-6-2 | Product Certifications | UL Class 1 Division 2 T4A<br />cULus<br />CSA Class 1 Division 2 T5<br />C-tick<br />ATEX zone 2/22<br />UL Class 1 Division 2 T5<br />CSA Class 1 Division 2 T4A |
Ambient Air Temperature for Operation | 32…122 °F (0…50 °C) | Ambient Air Temperature for Storage | -4…140 °F (-20…60 °C) |
Relative humidity | 10…90 % without condensation | Operating altitude | < 6561.68 ft (2000 m) |
IP degree of protection | IP20 IEC 60529 rear panel)<br />IP65 IEC 60529 front panel) | NEMA degree of protection | NEMA 4X front panel (indoor use) |
Shock resistance | 15 gn 11 ms IEC 60068-2-27 | Vibration resistance | 1 gn 9…150 Hz)IEC 60068-2-6<br />3.5 mm 5…9 Hz)IEC 60068-2-6 |
Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 | Resistance to fast transients | 2 kV IEC 61000-4-4 level 3 |
Specifications may be subject to change without notice
