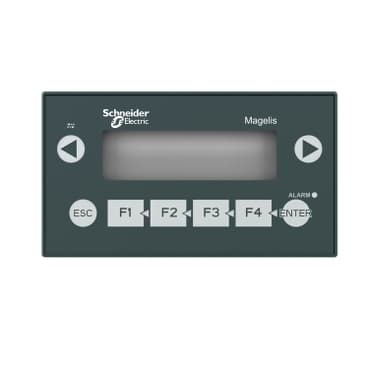

Product Model
XBTN401
Selling Points
- 1High-Resolution Display: 122 x 32 pixels matrix screen for clear visibility.
- 2Versatile Keypad: 8 keys with 4 customizable keys for flexible input.
- 3Durable Construction: Made of polyester with IP20/IP65 and NEMA 4X ratings for rugged use.
- 4Power Efficiency: Powered by DC, 5 W typical power consumption.
- 5Comprehensive Connectivity: Integrated with Vijeo Designer Lite, RS232C/RS485, and real-time clock for seamless integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Magelis XBTN | Product or Component Type | Small panel with keypad |
Display Resolution | 122 x 32 pixels | Software Type | Configuration software |
Software Designation | Vijeo Designer Lite | Operating System | Magelis |
Display Type | Extra-bright matrix backlit LCD | Display colour | Red<br />Green<br />Orange |
Character font | ASCII<br />Katakana<br />Chinese (simplified Chinese)<br />Greek<br />Cyrillic | [Us] rated supply voltage | 24 V DC |
Supply | External source | Supply voltage limits | 18…30 V |
Residual ripple | 1200 mV | Power Consumption in W | 5 W |
Number of key | 8 | Number of fixed keys | 4 |
Number of customisable keys | 4 | Local signalling | 6 LEDs |
Number of pages | 256 alarm pages<br />200 application pages | Memory type | Flash |
Memory capacity | 512 KB | Integrated connection type | Power supply removable screw terminal block<br />Printer port female mini DIN<br />Serial link female SUB-D 25, asynchronous RS232C/RS485)multidrop |
Realtime clock | Access to the PLC real-time clock | Product mounting | Flush mounting |
Fixing Mode | By 2 spring clips | Display material | Polyester |
Front material | PPT | Keypad material | Polyester |
marking | CE | Width | 5.2 in (132 mm) |
Height | 2.9 in (74 mm) | Depth | 1.7 in (43 mm) |
cut-out dimensions | 119.4 (+/- 0.5) x 63 (+/- 0.4) mm | Net Weight | 0.84 lb(US) (0.38 kg) |
Messages display capacity | 4 lines of 20 characters maximum<br />1 line of 5 characters minimum | Downloadable protocols | Uni-TE<br />Modbus<br />Third party protocols |
Standards | IEC 60068-2-6<br />IEC 61131-2<br />CSA C22.2 No 14<br />IEC 60068-2-27<br />UL 508 | Product Certifications | UL 1604<br />ATEX zone 2/22<br />CSA Class 1 Division 2<br />UL Class 1 Division 2 |
Ambient Air Temperature for Operation | 32…131 °F (0…55 °C) | Ambient Air Temperature for Storage | -4…140 °F (-20…60 °C) |
Relative humidity | 0…85 % without condensation | IP degree of protection | IP20 IEC 60529 rear panel)<br />IP65 IEC 60529 front panel) |
NEMA degree of protection | NEMA 4X front panel outdoor use) | Shock resistance | 15 gn 11 ms |
Vibration resistance | +/- 3.5 mm 2…8.45 Hz)<br />1 gn 8.45…150 Hz) |
Specifications may be subject to change without notice
