Product Model

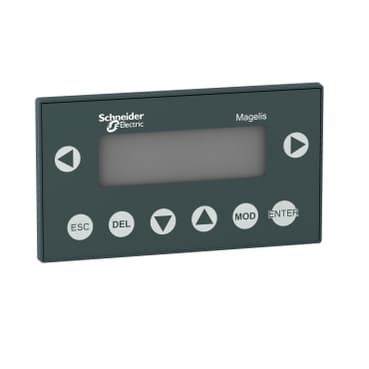

XBTNU400
Selling Points
- 1Compact design with a small footprint (132 mm x 74 mm x 43 mm).
- 2High-resolution extra-bright matrix backlit LCD display (122 x 32 pixels).
- 3Easy integration with Zelio logic and Magelis XBTN for seamless HMI functions.
- 4Supports multiple languages including ASCII, Chinese (simplified), Cyrillic, Greek, and Katakana.
- 5Reliable operation within a wide temperature range (0-55°C) and humidity levels (0-85% without condensation).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Magelis XBTN | Product or Component Type | Small panel with keypad |
Display Resolution | 122 x 32 pixels | Software Type | Configuration software |
Software Designation | Vijeo Designer Lite | Operating System | Magelis |
Display Type | Extra-bright matrix backlit LCD | Display colour | Green |
Character font | ASCII<br />Katakana<br />Cyrillic<br />Greek<br />Chinese (simplified Chinese) | [Us] rated supply voltage | 24 V DC |
Supply | External source | Supply voltage limits | 18…30 V |
Residual ripple | 1200 mV | Power Consumption in W | 5 W |
Number of key | 8 | Number of fixed keys | 4 |
Number of customisable keys | 4 | Number of pages | 256 alarm pages<br />200 application pages |
Memory type | Flash | Memory capacity | 512 KB |
Integrated connection type | Power supply removable screw terminal block<br />Serial link female SUB-D 25, asynchronous RS232C/RS485)multidrop | Realtime clock | Access to the PLC real-time clock |
Product mounting | Flush mounting | Fixing Mode | By 2 spring clips |
Display material | Polyester | Front material | PPT |
Keypad material | Polyester | marking | CE |
Width | 5.2 in (132 mm) | Height | 2.9 in (74 mm) |
Depth | 1.7 in (43 mm) | cut-out dimensions | 119.4 (+/- 0.5) x 63 (+/- 0.4) mm |
Messages display capacity | 1 line of 5 characters minimum<br />4 lines of 20 characters maximum | Downloadable protocols | Modbus |
Standards | IEC 60068-2-27<br />IEC 61131-2<br />CSA C22.2 No 14<br />IEC 60068-2-6<br />UL 508 | Product Certifications | UL 1604<br />UL Class 1 Division 2<br />CSA Class 1 Division 2<br />ATEX zone 2/22 |
Ambient Air Temperature for Operation | 32…131 °F (0…55 °C) | Ambient Air Temperature for Storage | -4…140 °F (-20…60 °C) |
Relative humidity | 0…85 % without condensation | IP degree of protection | IP20 IEC 60529 rear panel)<br />IP65 IEC 60529 front panel) |
NEMA degree of protection | NEMA 4X front panel outdoor use) | Shock resistance | 15 gn 11 ms |
Specifications may be subject to change without notice
