Product Model

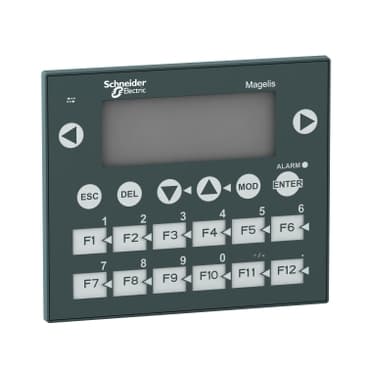

XBTR411
Selling Points
- 1Compact design with keypad and matrix backlit LCD display.
- 2High-resolution display with 122 x 32 pixels, supporting 4 lines of 20 characters.
- 3Compatible with 24V DC power supply.
- 4Integrated with serial link (RS232C/RS485) for multidrop topology.
- 5Includes 2-year warranty for reliable performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Magelis XBTR | Display Resolution | 122 x 32 pixels |
Software Type | Configuration software | Software Designation | Vijeo Designer Lite |
Operating System | Windows | Display Type | Matrix backlit LCD |
Character font | Latin<br />Chinese (simplified Chinese)<br />Greek<br />Cyrillic<br />Katakana | Supply voltage limits | 18…30 V |
Residual ripple | <= 1200 MV | Power Consumption in W | 5 W |
Number of key | 20 | Number of fixed keys | 8 |
Number of customisable keys | 12 | Local signalling | 16 LEDs |
Number of pages | 200 application pages<br />256 alarm pages | Memory type | Flash |
Memory capacity | 512 KB | Integrated connection type | Serial link female SUB-D 25, asynchronous RS232C/RS485)multidrop<br />Power supply removable screw terminal block<br />Printer port female mini DIN |
Realtime clock | Access to the PLC real-time clock | Range Compatibility | Modicon Premium<br />Modicon M340<br />Twido<br />Modicon TSX Micro<br />Modicon Momentum<br />Modicon Quantum |
Product mounting | Flush mounting | Fixing mode | By 4 spring clips |
Display material | Polyester | Front material | PPT |
Keypad material | Polyester | marking | CE |
Height | 4.6 in (118 mm) | Width | 5.4 in (137 mm) |
Depth | 1.5 in (39 mm) | cut-out dimensions | 119.6 (+/- 0.5) x 105.2 (+/- 0.4) mm |
Net Weight | 1.21 lb(US) (0.55 kg) | Product or Component Type | Small panel with keypad |
Display colour | Green<br />Red<br />Orange | display capacity | 4 lines of 20 characters maximum<br />1 line of 5 characters minimum |
[Us] rated supply voltage | 24 V DC | Supply | External source |
Downloadable protocols | Modbus<br />Third party protocols<br />Uni-TE | Standards | IEC 61131-2<br />IEC 60068-2-6<br />CSA C22.2 No 14<br />IEC 60068-2-27<br />UL 508 |
Product Certifications | CSA Class 1 Division 2<br />UL 1604<br />ATEX zone 2/22<br />UL Class 1 Division 2 | Ambient Air Temperature for Operation | 32…131 °F (0…55 °C) |
Ambient Air Temperature for Storage | -4…140 °F (-20…60 °C) | Relative humidity | 0…85 % without condensation |
IP degree of protection | IP20 IEC 60529 rear panel)<br />IP65 IEC 60529 front panel) | NEMA degree of protection | NEMA 4X front panel outdoor use) |
Shock resistance | 15 gn 11 ms | Vibration resistance | +/- 3.5 mm 2…8.45 Hz)<br />1 gn 8.45…150 Hz) |
Specifications may be subject to change without notice
