Product Model
XBTZ9780
Selling Points
- 1Connects Magelis display units and terminals.
- 2Supports Modbus and Uni-Telway communication protocols.

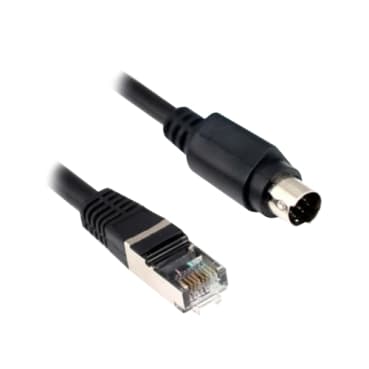

- 32.5 meters long with 8-pin mini DIN male and RJ45 male connectors.
- 4Perfect for automation and process control applications.
- 5Environmentally friendly packaging made with recycled cardboard.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XBT | accessory / separate part category | Connection accessories |
accessory / separate part type | Connecting cable | Accessory / separate part designation | Uni-Telway/Modbus serial link |
Accessory / separate part destination | XBT terminal<br />Small touch screen panel | Cable length | 8.2 ft (2.5 m) |
Product Compatibility | XBTGT1...<br />XBTRT511<br />XBTR400<br />XBTGK....<br />XBTRT500<br />XBTN400<br />XBTN200 | Range Compatibility | Harmony HMI GTO<br />Modicon TSX Micro<br />Twido<br />Harmony STO & STU<br />Modicon Premium automation platform |
Electrical connection | 1 male connector mini DIN, 8 pins<br />1 male connector RJ45 | communication port protocol | Modbus<br />Uni-Telway |
Physical interface | RS485 | Net Weight | 0.40 lb(US) (0.18 kg) |
Specifications may be subject to change without notice
