Product Model
XBTZG9721
Selling Points
- 1Compliant with Siemens PPI Protocol: Ensures seamless integration with Siemens Simatic PLCs.
- 2Direct Connection Cable: Facilitates direct connection of XBT terminals to third-party PLCs.
- 32.5m Length: Conveniently sized for various industrial applications.

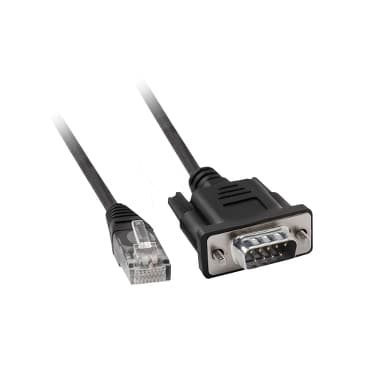

- 4RJ45 and SUB-D Connectors: Equipped with one male RJ45 and one male SUB-D 9 connectors.
- 5RoHS and REACH Compliant: Meets environmental standards for safety and sustainability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XBT | accessory / separate part category | Connection accessories |
accessory / separate part type | Connecting cable | Accessory / separate part designation | Direct connection cable |
Accessory / separate part destination | Direct connection of XBT terminal to Siemens Simatic PLC<br />Small touch screen panel | Product Compatibility | XBTGT6...<br />XBTGT5...<br />XBTRT500<br />XBTRT511<br />XBTGK....<br />XBTGT4...<br />XBTGT1...<br />XBTGT7340<br />XBTGT2... |
Range Compatibility | Harmony HMI GTO<br />Siemens S7-400<br />Siemens S7-200<br />Siemens S7-300<br />Harmony STO & STU | Cable length | 8.2 ft (2.5 m) |
Electrical connection | 1 male connector RJ45<br />1 male connector SUB-D 9 | communication port protocol | PPI<br />MPI |
Physical interface | RS485 |
Specifications may be subject to change without notice
