Product Model
XBTZG9740
Selling Points
- 1Direct connection cable for Magelis terminals to Omron Sysmac PLCs.

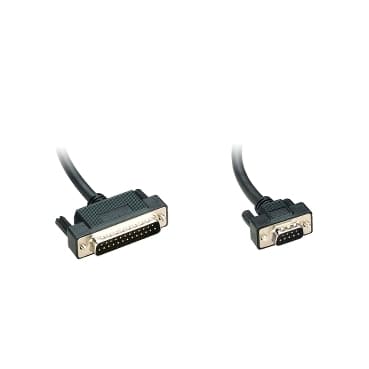

- 25-meter length with 1 male connector SUB-D 25 and 1 male connector SUB-D 9.
- 3Compatible with Harmony HMI, GTO, and Omron FINS/A Link protocols.
- 4RS232C physical interface ensures reliable data transmission.
- 5Compliant with EU RoHS and China RoHS regulations, ensuring environmental sustainability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XBT | accessory / separate part category | Connection accessories |
accessory / separate part type | Connecting cable | Product or Component Type | Connecting cable |
Accessory / separate part designation | Direct connection cable | Accessory / separate part destination | Direct connection of XBT terminal to Omron Sysmac PLC |
Product Compatibility | XBTGK....<br />XBTGT4...<br />XBTGT7340<br />XBTGT5...<br />XBTGTW...<br />XBTGT6...<br />XBTOT...<br />XBTGT2... | Range Compatibility | Harmony HMI GTO<br />Omron FINS<br />Omron A Link |
Cable length | 16.4 ft (5 m) | Electrical connection | 1 male connector SUB-D 25<br />1 male connector SUB-D 9 |
communication port protocol | A Link (SIO)<br />FINS (SIO) | Physical interface | RS232C |
Specifications may be subject to change without notice
