Product Model

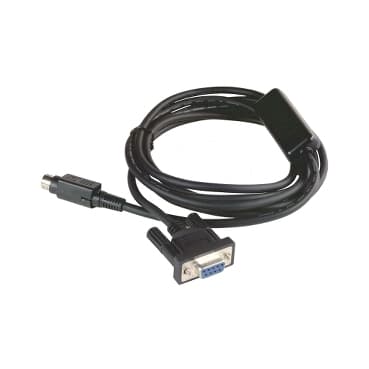

XBTZG9775
Selling Points
- 1Connects Magelis terminals to Mitsubishi FX series PLCs.
- 2Ensures reliable communication via RS 422 protocol.
- 3Enables direct connection of XBTGH and XBTGT terminals.
- 4Available in a 5-meter length for extended reach.
- 5Meets Schneider Electric's Green Premium standards for sustainability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XBT | accessory / separate part category | Connection accessories |
accessory / separate part type | Connecting cable | Product or Component Type | Connecting cable |
Accessory / separate part designation | Direct connection cable | Accessory / separate part destination | Direct connection of XBT terminal to Mitsubishi Melsec PLC |
Product Compatibility | XBTOT...<br />XBTGT7340<br />XBTGT5...<br />XBTGK....<br />XBTGT4...<br />XBTGT6...<br />XBTGT2... | Range Compatibility | Mitsubishi FX<br />Harmony HMI GTO |
Cable length | 16.4 ft (5 m) | Electrical connection | 1 male connector mini DIN<br />1 male connector SUB-D 9 |
communication port protocol | FX (CPU) | Physical interface | RS422 |
Specifications may be subject to change without notice
