Product Model

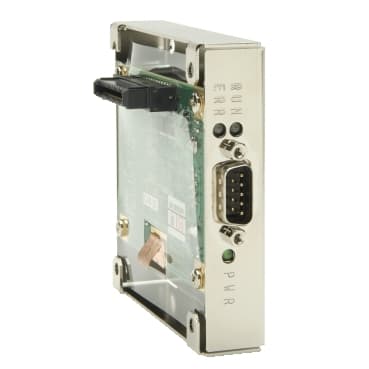

XBTZGCANM
Selling Points
- 1Advanced Panel Control: The XBTZGCANM is specifically designed for advanced panels with control, ensuring precise and reliable operation in industrial settings.
- 2CANopen Compatibility: Compatible with a wide range of CANopen bus master modules, including XBTGT2220, XBTGT2130, and more, for seamless integration.
- 3High Reliability: Built with robust components and designed to operate within a wide temperature range (32…122 °F / 0…50 °C), ensuring high reliability in various environments.
- 4Easy Installation: Features a compact design with an integrated connection type (CANopen master bus male SUB-D 9, 2 twisted shielded pairs), making installation straightforward.
- 5Compliance and Safety: Meets stringent product certifications including UL and IP20, ensuring compliance with industry safety standards and regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Magelis XBT GC, GT/GK with control | Product or Component Type | CANopen bus master module |
Product Compatibility | XBTGT2220<br />XBTGT2130<br />XBTGT2930<br />XBTGT2330<br />XBTGT5230<br />XBTGT6340<br />XBTGT4330<br />XBTGK5330<br />XBTGK2330<br />XBTGT2110<br />XBTGT5330<br />XBTGT5340<br />XBTGT5430<br />XBTGT7340<br />XBTGT4340<br />XBTGT2430<br />XBTGT2120<br />XBTGT6330<br />XBTGT4230<br />XBTGK2120 | Integrated connection type | CANopen master bus male SUB-D 9, 2 twisted shielded pairs |
Bus type | CANopen M10 DR 303-1<br />CANopen M10 DS 301 V4.02 | Number of channels | 64 RPDO<br />64 TPDO |
[Us] rated supply voltage | 5 V DC | Transmission rate | 100 kbit/s 1640.4 ft (500 m)<br />1000 kbit/s 164.04 ft (50 m)<br />125 kbit/s 1394.4 ft (425 m)<br />20 kbit/s 3280.8 ft (1000 m)<br />250 kbit/s 820.2 ft (250 m)<br />50 kbit/s 2624.7 ft (800 m)<br />500 kbit/s 410.1 ft (125 m) |
Power dissipation in W | 2.4 W 5 V DC | Number of modules per base controller | 1 |
Number of server device(s) | 16 | Supply | External supply |
marking | CE | Status LED | 1 LED ERR<br />1 LED PWR<br />1 LED RUN |
Net Weight | 0.2 lb(US) (0.1 kg) | Product Certifications | UL |
IP Degree of Protection | IP20 | Ambient Air Temperature for Operation | 32…122 °F (0…50 °C) |
Relative Humidity | 10…90 % without condensation |
Specifications may be subject to change without notice
