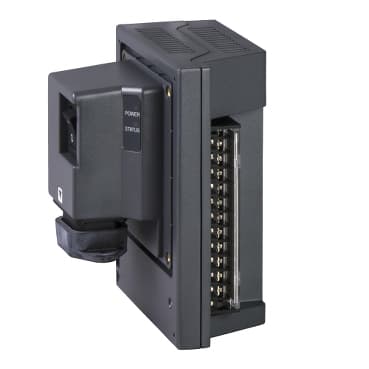

Product Model
XBTZGJBOX
Selling Points
- 1Enables 24V dc power supply to XBTGH terminals.
- 2Supports connection of various safety inputs/outputs.
- 3Facilitates connection on Ethernet or Modbus networks.
- 4Compatible with 35 mm symmetrical DIN rail mounting.
- 5Environmentally friendly packaging made with recycled cardboard.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Magelis XBTGH | Product or Component Type | Junction box |
Product Specific Application | For XBTGH advanced hand-held panel | [Us] rated supply voltage | 24 V DC |
Supply voltage limits | 19.2…28.8 V | Inrush current | 30 A |
Power consumption in W | 6.3 W | Electrical connection | 1 connector 24-pin connector hand-held panel<br />1 connector RJ45 Ethernet TCP/IP<br />1 male connector SUB-D 9 RS232C/RS422/RS485 <= 115.2 kbits/s COM1 serial link<br />Screw terminal block 24 inputs/outputs |
Port Ethernet | 10BASE-T/100BASE-TX | Enclosure Material | PPT |
Fixing mode | By 4 M4 screws 1.5 to 10 mm thick panel<br />Clip-on 35 mm symmetrical DIN rail | marking | CE |
Immunity to microbreaks | 10 ms | Standards | FCC Class A<br />EN 61131-2<br />IEC 61000-6-2<br />UL 508 |
Product Certifications | cULus<br />C-tick | Ambient Air Temperature for Operation | 32…122 °F (0…50 °C) |
Ambient Air Temperature for Storage | -4…140 °F (-20…60 °C) | Operating altitude | <= 6561.68 ft (2000 m) |
IP degree of protection | IP20 rear panel)<br />IP65 front panel) | Shock resistance | 15 gn 11 ms IEC 60068-2-27 |
Vibration resistance | 1 gn 9…150 Hz)<br />3.5 mm 5…9 Hz) | Relative Humidity | 0…90 % without condensation or dripping water |
Resistance to electrostatic discharge | 6 kV IEC 61000-4-2 level 3 | Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 |
Resistance to fast transients | 2 kV IEC 61000-4-4 level 3 |
Specifications may be subject to change without notice
