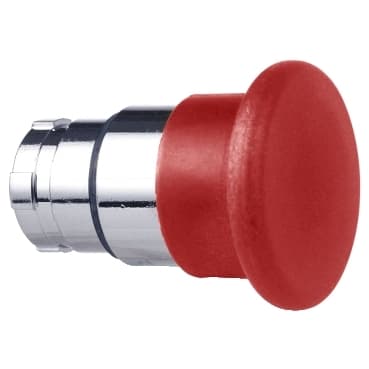

Product Model
ZB2BC4
Selling Points
- 1High-Quality Construction: Made with durable materials for long-lasting performance.
- 2Easy Installation: Standard mounting diameter of 22 mm for seamless integration.
- 3Red Mushroom Head: Visually distinct emergency stop button for immediate recognition.
- 4Spring Return Mechanism: Ensures consistent operation and reliable emergency stops.
- 5IP66/67/69K Rating: Resistant to dust, water, and vibrations for harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB2 | Product or Component Type | Mushroom head push-button |
Device short name | ZB2 | Bezel material | Zamak |
Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
Product Compatibility | XB2. | Mounting Location | Panel |
Shape of signaling unit head | Round | Type of operator | Spring return spring return |
Operator profile | Red mushroom Ø 40 mm, unmarked | Mechanical durability | 3000000 cycles |
Height | 1.6 in (40 mm) | Width | 1.6 in (40 mm) |
Depth | 1.9 in (48 mm) | Net Weight | 0.099 lb(US) (0.045 kg) |
Protective treatment | TC/TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Standards | GB/T 14048.5<br />EN/IEC 60947-5-1<br />GB/T 14048.1<br />EN/IEC 60947-1<br />EN/IEC 60947-5-4<br />EN/IEC 60947-5-5<br />GB/T 14048.14 |
Product Certifications | CCC<br />CE | Vibration resistance | 8 gn 40…500 Hz)IEC 60068-2-6 |
Shock resistance | 15 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
