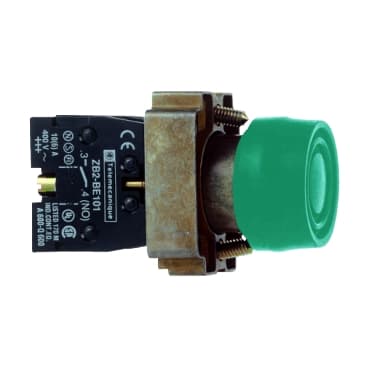

schneider ZB2BE101

Selling Points

  • 1High-Quality Construction: Built with silver alloy contact material for durability and efficiency.
  • 2Compact Design: 22mm switch standard for seamless integration into various industrial settings.
  • 3Versatile Usage: Suitable for a wide range of industrial applications, including control panels and machinery.
  • 4Safe and Reliable: Meets UL Listed and CSA certified standards for North America, ensuring safety and compliance.
  • 5Easy Installation: Features screw terminals for simple and secure connections.
Product Details
ZB2BE101
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XAC
Product or Component Type
Contact block
Component name
ZB2
electrical circuit type
Control circuit
Contact block application
Single speed
Contact block type
Single
Type of operator
Spring return
Product Compatibility
XB4<br />XAPS2<br />XACA<br />XB5
Contacts type and composition
1 NO
Mounting of block
Front mounting
Contact operation
Slow-break
Mechanical durability
1000000 cycles
Contact code designation
A600 AC-15, Ue = 240 V, Ie = 3 A IEC 947-5-1 appendix A<br />A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 947-5-1 appendix A<br />Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 947-5-1 appendix A<br />Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 947-5-1 appendix A
[Ithe] conventional enclosed thermal current
10 A
[Ui] rated insulation voltage
600 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage
6 kV IEC 60947-1
Maximum resistance across terminals
25 MOhm
Operating force
13…15 N
Short-circuit protection
10 A fuse protection cartridge gG (gl)
Rated operational power in W
40 W DC-13 1000000 cycles 3600 cyc/h 120 V 0.5 IEC 60947-5-1<br />48 W DC-13 1000000 cycles 3600 cyc/h 48 V 0.5 IEC 60947-5-1<br />65 W DC-13 1000000 cycles 3600 cyc/h 24 V 0.5 IEC 60947-5-1
Terminals description ISO n°1
(13-14)NO
Net Weight
0.04 lb(US) (0.02 kg)
Connections - terminals
Screw clamps terminals, 1 x 2.5 mm² with or without cable end<br />Screw clamps terminals, 2 x 1.5 mm² with or without cable end
Ambient Air Temperature for Operation
-13…158 °F (-25…70 °C)
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Vibration resistance
15 gn 10…500 Hz)IEC 60068-2-6
Electrical shock protection class
Class II IEC 61140
Standards
EN/IEC 60947-5-1<br />UL 508<br />EN/IEC 60204-32<br />CSA C22.2 No 14
