Product Model

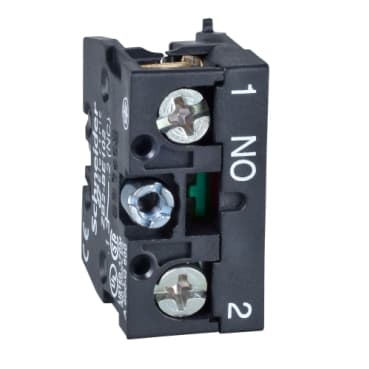

ZB2BE201
Selling Points
- 1High-performance power distribution for critical applications.
- 2Compact design with enhanced reliability and durability.
- 3Easy installation and maintenance with intuitive controls.
- 4Advanced thermal management for optimal performance in harsh environments.
- 5Compliant with international safety standards for peace of mind.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XAC | Product or Component Type | Contact block |
Component name | ZB2 | electrical circuit type | Control circuit |
Contact block application | Up / down operator | Contact block type | Single |
Type of operator | Spring return | Product Compatibility | XACA |
Contacts type and composition | 1 NO | Mounting of block | Front mounting |
Contact operation | Staggered<br />Slow-break | Mechanical durability | 1000000 cycles |
Contact code designation | A600 AC-15, Ue = 240 V, Ie = 3 A IEC 947-5-1 appendix A<br />A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 947-5-1 appendix A<br />Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 947-5-1 appendix A<br />Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 947-5-1 appendix A | [Ithe] conventional enclosed thermal current | 10 A |
[Ui] rated insulation voltage | 600 V 3)IEC 60947-1 | [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
Maximum resistance across terminals | 25 MOhm | Operating force | 13…15 N |
Short-circuit protection | 10 A fuse protection cartridge gG (gl) | Rated operational power in W | 40 W DC-13 1000000 cycles 3600 cyc/h 120 V 0.5 IEC 60947-5-1<br />48 W DC-13 1000000 cycles 3600 cyc/h 48 V 0.5 IEC 60947-5-1<br />65 W DC-13 1000000 cycles 3600 cyc/h 24 V 0.5 IEC 60947-5-1 |
Terminals description ISO n°1 | (13-14)NO_CL | Net Weight | 0.033 lb(US) (0.015 kg) |
Connections - terminals | Screw clamps terminals, 1 x 2.5 mm² with or without cable end<br />Screw clamps terminals, 2 x 1.5 mm² with or without cable end | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Vibration resistance | 15 gn 10…500 Hz)IEC 60068-2-6 |
Electrical shock protection class | Class II IEC 61140 | Standards | IEC 60204-32<br />UL 508<br />IEC 60947-5-1<br />CSA C22.2 No 14 |
Specifications may be subject to change without notice
