Product Model
ZB2BW33
Selling Points

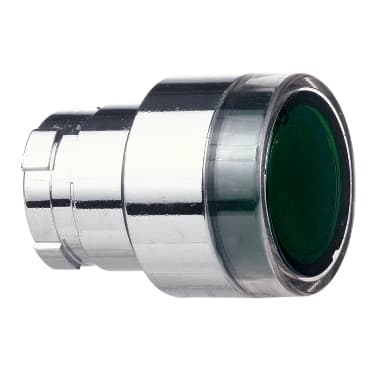

- 1Illuminated Pushbutton Head: Green, Ø 22mm for clear visibility.
- 2Durable Construction: Built to withstand industrial environments with a 3-year warranty.
- 3Vibration Resistance: 15 gn (f= 40…500 Hz) for stable operation.
- 4Ambient Temperature Range: Operates between -25…55 °C, stores between -40…70 °C.
- 5IP65 Rating: Flush and protecting, suitable for harsh conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony | Product or Component Type | Head for illuminated push-button |
Bezel material | Chromium plated metal | Shape of signaling unit head | Round |
electrical circuit type | Control circuit | Type of operator | Spring return |
Mechanical durability | 3000000 cycles | Height | 1.2 in (30 mm) |
Width | 1.2 in (30 mm) | Net Weight | 0.029 lb(US) (0.013 kg) |
cap/operator or lens colour | Green | marking | Unmarked |
Ambient Air Temperature for Operation | -13…131 °F (-25…55 °C) | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Vibration resistance | 15 gn 40…500 Hz)IEC 60068-2-6 | Overvoltage category | Class II IEC 60536<br />Class II NF C 20-030 |
Protective treatment | TC/TH | Standards | NF C 63-140<br />EN/IEC 60947-5-1<br />VDE 0660-200<br />IEC 60337-1 |
Specifications may be subject to change without notice
