Product Model

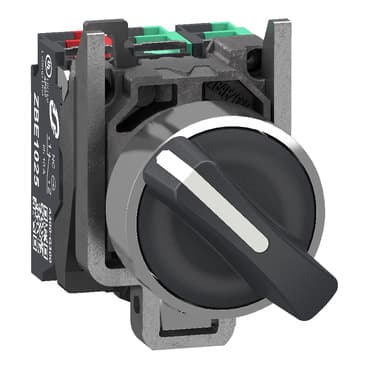

ZB4AEQ3994
Selling Points
- 1Compact design with Ø22 mm diameter.
- 22-position extendable switch with 2 NO and 1NC contacts.
- 3Spring-clap mechanism for secure operation.
- 4Ideal for automation and control systems.
- 5Normally in stock with same-day shipping available.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Selector switch |
Device short name | ZB4 | Bezel material | Chromium plated metal |
Fixing collar material | Zamak | Mounting diameter | 0.9 in (22.5 mm) |
Sale per indivisible quantity | 1 | Head type | Standard |
Shape of signaling unit head | Round | Type of operator | stay put |
Operator profile | Black standard handle | Operator position information | 2 positions 90° |
Contacts type and composition | 2 NO + 1 NC | Contact operation | Slow-break |
Connections - terminals | Push-in, <= 2 x 1.5 mm² with wire end ferrule IEC 60947-1<br />Push-in, >= 1 x 0.34 mm² without wire end ferrule IEC 60947-1 | Height | 1.9 in (47 mm) |
Width | 1.2 in (30 mm) | Depth | 2.3 in (59.2 mm) |
Terminals description ISO n°1 | (13-14)NO<br />(21-22)NC | Net Weight | 0.207 lb(US) (0.094 kg) |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Contacts usage | Standard contacts |
Positive opening | With IEC 60947-5-1 appendix K | Torque value | 1.24 lbf.in (0.14 N.m) NO changing electrical state<br /> NC changing electrical state |
Mechanical durability | 10000000 cycles | Contacts material | Silver alloy (Ag/Ni) |
Short-circuit protection | 10 A cartridge fuse gG IEC 60947-5-1 | [Ith] conventional free air thermal current | 10 A IEC 60947-5-1 |
[Ui] rated insulation voltage | 300 V 3)IEC 60947-1 | [Uimp] rated impulse withstand voltage | 4 kV IEC 60947-1 |
[Ie] rated operational current | 6 A 120 V, AC-15, A300 IEC 60947-5-1<br />3 A 240 V, AC-15, A300 IEC 60947-5-1<br />0.55 A 125 V, DC-13, Q300 IEC 60947-5-1<br />0.27 A 250 V, DC-13, Q300 IEC 60947-5-1 | Device presentation | Complete product |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class I IEC 60536 |
IP degree of protection | IP66 IEC 60529<br />IP69<br />IP69K<br />IP67 | NEMA degree of protection | NEMA 13<br />NEMA 4X |
IK degree of protection | IK04 conforming to IEC 50102 | Standards | IEC 60947-1<br />IEC 60947-5-1<br />IEC 60947-5-4<br />IEC 60947-5-5<br />UL 60947-1<br />UL 60947-5-1<br />UL 60947-5-5<br />UL 1059<br />UL 486E<br />CSA C22.2 No 60947-1<br />CSA C22.2 No 60947-5-1<br />CSA C22.2 No 158<br />CSA C22.2 No 65<br />IACS E10 |
Product Certifications | BV<br />LROS (Lloyds register of shipping)<br />EAC<br />IECEE CB Scheme<br />CCC<br />UL<br />DNV-GL<br />CSA | Vibration resistance | 5 gn 10…500 Hz)IEC 60068-2-6<br />25 mm peak to peak 2…10 Hz)IEC 60068-2-6 |
Shock resistance | 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27<br />30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
