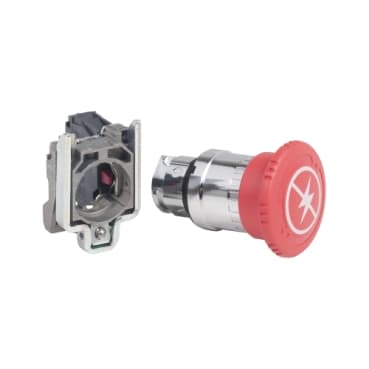

Product Model
ZB4AEQ4020
Selling Points
- 1Robust design withstands harsh environments (-25°C to 70°C).
- 2IP66 rating ensures dust, water, and vibration resistance.
- 3Easy assembly and disassembly for quick setup.
- 4Compatible with various connection types (screw clamp, connector, Faston connector, spring terminal).
- 5Chromium-plated metal bezel for durability and impact resistance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Head for non-illuminated push-button |
Device short name | ZB4 | Mounting diameter | 0.9 in (22 mm) |
Sale per indivisible quantity | 1 | Head type | Standard |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Overvoltage category | Class I IEC 60536 |
IP degree of protection | IP66 IEC 60529 | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
