Product Model
ZB4BA687
Selling Points

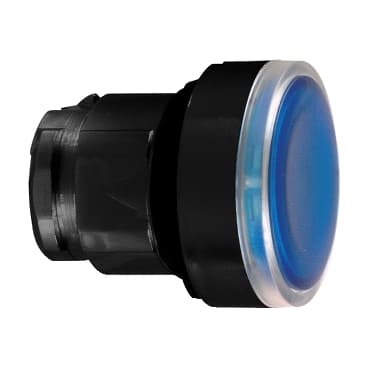

- 1The ZB4BA687 features a blue flush illuminated pushbutton head with a transparent cap, enhancing visibility and ease of use.
- 2Operates with a spring return/impulse mechanism, ensuring reliable operation and quick return to the original position.
- 3Designed for use with integral LED, providing high brightness and full-surface illumination.
- 4Compatible with the Harmony XB4 Series 22mm illuminated pushbutton switches, offering seamless integration.
- 5Compliant with RoHS and SVHC regulations, ensuring environmental safety and sustainability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Head for illuminated push-button |
Device short name | ZB4 | Product Compatibility | Integral LED |
Bezel material | Black metal | Head type | Standard |
Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Round | Type of operator | spring return |
Operator profile | Blue flush, unmarked | Operator additional information | For insertion of legend |
CAD overall width | 1.1 in (29 mm) | CAD overall height | 1.1 in (29 mm) |
CAD overall depth | 1.2 in (30 mm) | Net Weight | 0.062 lb(US) (0.028 kg) |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Mechanical durability | 10000000 cycles |
Electrical composition code | M1 6 single front mounting integral LED<br />M2 6 single and double front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED<br />C3 6 single front mounting<br />C4 6 single and double front mounting<br />C14 2 single front mounting | Device presentation | Basic element |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class I IEC 60536 |
IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K | NEMA degree of protection | NEMA 13<br />NEMA 4X |
IK degree of protection | IK06 conforming to EN 50102 | Standards | UL 508<br />EN/IEC 60947-5-5<br />EN/IEC 60947-1<br />EN/IEC 60947-5-4<br />JIS C8201-5-1<br />EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />JIS C8201-1 |
Product Certifications | GL<br />LROS (Lloyds register of shipping)<br />DNV<br />UL Listed<br />BV<br />CSA | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
