Product Model

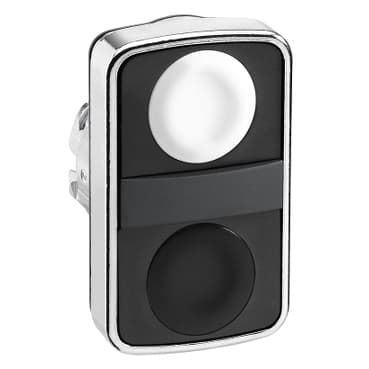

ZB4BA7120
Selling Points
- 1Spring Return Mechanism: Operates with a spring return/impulse mechanism for smooth and reliable operation.
- 2Chromium-Plated Metal Bezel: Durable and resistant to corrosion, ensuring long-lasting performance.
- 3IP67 Rating: Withstand harsh environments, including dust and water, thanks to its IP67 rating.
- 4Versatile Interface: Ideal for controlling machines with its clear colors and flush elements, minimizing errors in machine control.
- 5Compliance with Regulations: Part of Schneider Electric's Green Premium, ensuring compliance with the latest environmental regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Head for double-headed push-button |
Device short name | ZB4 | Bezel material | Chromium plated metal |
Mounting diameter | 0.9 in (22 mm) | Head type | Standard |
Sale per indivisible quantity | 1 | Shape of signaling unit head | Rectangular |
Type of operator | spring return | Operator profile | Black flush, unmarked<br />White flush, unmarked |
Operators description | White unmarked - black unmarked | Net Weight | 0.123 lb(US) (0.056 kg) |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Colour of marking | White marking when green, red or black caps<br />Black marking when white caps |
Mechanical durability | 1000000 cycles | Electrical composition code | C3 6 single front mounting<br />C4 6 single and double front mounting<br />C14 2 single front mounting |
Device presentation | Basic element | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Electrical shock protection class | Class I IEC 60536 |
IP degree of protection | IP67 IEC 60529<br />IP69 IEC 60529 | NEMA degree of protection | NEMA 13<br />NEMA 4X |
IK degree of protection | IK06 conforming to IEC 50102 | Standards | IEC 60947-1<br />IEC 60947-5-1<br />JIS C8201-5-1<br />IEC 60947-5-5<br />UL 508<br />IEC 60947-5-4<br />CSA C22.2 No 14<br />JIS C8201-1 |
Product Certifications | CSA<br />LROS (Lloyds register of shipping)<br />BV<br />UL Listed<br />DNV | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
