Product Model

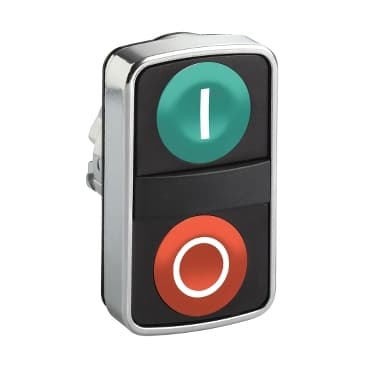

ZB4BA82347
Selling Points
- 1IP40 and NEMA 4X rated for robust environmental performance.
- 2Chromium-plated metal bezel ensures long-lasting durability.
- 3Spring-return (impulse/momentary) operating mode simplifies integration into control systems.
- 422 mm diameter, 47 mm height, and 28 mm depth for space-efficient installation.
- 51 million cycles mechanical durability for consistent operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Head for double-headed push-button |
Device short name | ZB4 | Bezel material | Black metal |
Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Rectangular | Type of operator | spring return |
Operator profile | Green flush, I white)<br />Red flush, O white) | Operators description | Green ''I'' - red ''O'' |
CAD overall width | 1.1 in (28 mm) | CAD overall height | 1.9 in (47 mm) |
CAD overall depth | 1.1 in (28 mm) | Net Weight | 0.104 lb(US) (0.047 kg) |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Colour of marking | Black marking when white caps<br />White marking when green, red or black caps |
Mechanical durability | 1000000 cycles | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
Electrical shock protection class | Class I IEC 60536 | IP degree of protection | IP40 IEC 60529 |
NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK03 conforming to IEC 50102 |
Standards | EN/IEC 60947-5-5<br />EN/IEC 60947-5-4<br />EN/IEC 60947-5-1<br />UL 508<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />EN/IEC 60947-1<br />JIS C8201-1 | Product Certifications | UL Listed<br />GL<br />LROS (Lloyds register of shipping)<br />BV<br />CSA<br />DNV |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
