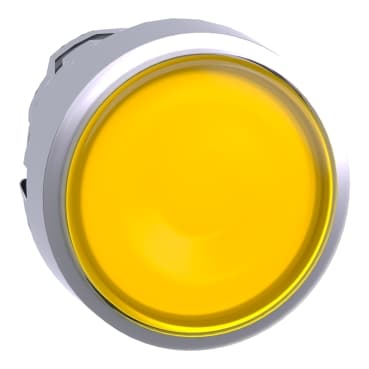

schneider ZB4BA88

Selling Points

  • 1Built with metal for durability and resistance to harsh environments.
  • 2Equipped with an integral LED for clear visibility.
  • 3Ensures smooth and reliable operation.
  • 4Provides excellent protection against dust, water, and high-pressure washes.
  • 5Compatible with universal LED blocks for quick and efficient assembly.
Product Details
ZB4BA88
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Head for illuminated push-button
Device short name
ZB4
Product Compatibility
Universal LED
Bezel material
Chromium plated metal
Mounting diameter
0.9 in (22.5 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Round
Type of operator
spring return
Operator profile
Yellow flush, unmarked
Operator additional information
For insertion of legend
cap/operator or lens colour
Yellow
CAD overall width
1.1 in (29 mm)
CAD overall height
1.1 in (29 mm)
CAD overall depth
1.2 in (30 mm)
Net Weight
0.062 lb(US) (0.028 kg)
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Mechanical durability
10000000 cycles
Electrical composition code
M1 6 single front mounting integral LED<br />M2 6 single and double front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED<br />C3 6 single front mounting<br />C4 6 single and double front mounting<br />C14 2 single front mounting
Device presentation
Basic element
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class I IEC 60536
IP degree of protection
IP66 IEC 60529<br />IP67<br />IP69<br />IP69K
NEMA degree of protection
NEMA 13<br />NEMA 4X
IK degree of protection
IK06 conforming to IEC 62262
Standards
IEC 60947-5-1<br />IEC 60947-5-4<br />IEC 60947-1<br />IEC 60947-5-5<br />UL 508<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />JIS C8201-1
Product Certifications
BV<br />CSA<br />DNV<br />LROS (Lloyds register of shipping)<br />UL Listed
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
