Product Model

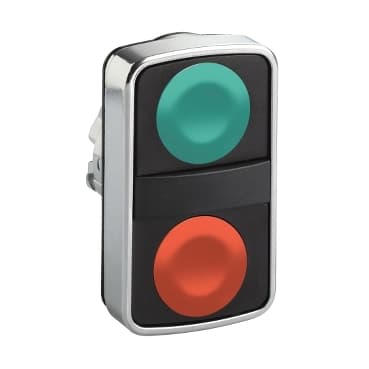

ZB4BA9134
Selling Points
- 1Built with durable materials for long-lasting performance.
- 2Fits perfectly in 22mm spaces, ideal for tight installations.
- 3Features two heads for versatile operation in various settings.
- 4Simple mounting and connection process for quick setup.
- 5Designed to withstand harsh industrial environments with IP40/66 protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Head for double-headed push-button |
Device short name | ZB4 | Bezel material | Chromium plated metal |
Mounting diameter | 0.9 in (22 mm) | Head type | Standard |
Sale per indivisible quantity | 1 | Shape of signaling unit head | Rectangular |
Type of operator | spring return | Operator profile | Green flush, unmarked<br />Red flush, unmarked |
Operators description | Green unmarked - red unmarked | CAD overall width | 1.2 in (30 mm) |
CAD overall height | 2.0 in (50 mm) | CAD overall depth | 1.4 in (35 mm) |
Net Weight | 0.115 lb(US) (0.052 kg) | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
Colour of marking | White marking when green, red or black caps<br />Black marking when white caps | Mechanical durability | 1000000 cycles |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Electrical shock protection class | Class I IEC 60536 |
IP degree of protection | IP66 IEC 60529 | NEMA degree of protection | NEMA 13<br />NEMA 4X |
IK degree of protection | IK03 conforming to IEC 50102 | Standards | EN/IEC 60947-5-1<br />EN/IEC 60947-1<br />JIS C8201-5-1<br />UL 508<br />CSA C22.2 No 14<br />EN/IEC 60947-5-5<br />EN/IEC 60947-5-4<br />JIS C8201-1 |
Product Certifications | BV<br />LROS (Lloyds register of shipping)<br />GL<br />DNV<br />UL Listed<br />CSA | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
