schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZB4BB2

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

37417

In Stock
Last updated: 2025/4/28
View Specifications

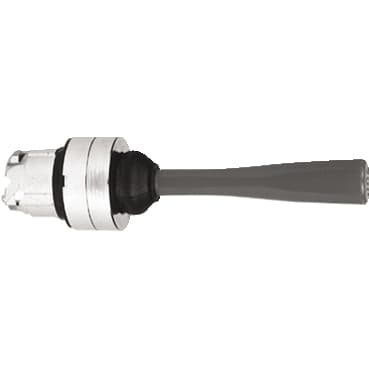

schneider ZB4BB2

Selling Points

  • 1High Vibration Resistance: Withstands up to 5 gn vibration (f = 2...500 Hz) for reliable operation.
  • 2Omni-Directional Spring Return: Ensures smooth and consistent movement in all directions.
  • 3Chromium Plated Metal: Durable and resistant to corrosion, ensuring long-lasting performance.
  • 4Customizable Options: Compatible with a wide range of accessories for tailored panel configurations.
  • 5Compliant with Safety Standards: Meets IP66 and NEMA 13 protection standards for enhanced safety and durability.
Product Details
ZB4BB2
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Head for joystick controller
Device short name
ZB4
Bezel material
Chromium plated metal
Mounting diameter
0.9 in (22 mm)
Head type
Standard
Sale per indivisible quantity
1
Shape of signaling unit head
Round
Type of operator
To zero position spring return
Operator profile
Black 54 mm long operating shaft
Operator direction information
Omnidirectional
Net Weight
0.128 lb(US) (0.058 kg)
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Operator position information
All positions
Mechanical durability
1000000 cycles
Device presentation
Basic element
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-13…158 °F (-25…70 °C)
Electrical shock protection class
Class I IEC 60536
IP degree of protection
IP66 IEC 60529
NEMA degree of protection
NEMA 13<br />NEMA 4X
IK degree of protection
IK03 conforming to IEC 50102
Standards
CSA C22.2 No 14<br />IEC 60947-5-1<br />IEC 60947-1<br />IEC 60947-5-4<br />JIS C8201-5-1<br />UL 508<br />IEC 60947-5-5<br />JIS C8201-1
Product Certifications
CSA<br />LROS (Lloyds register of shipping)<br />BV<br />UL Listed<br />DNV
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
