Product Model

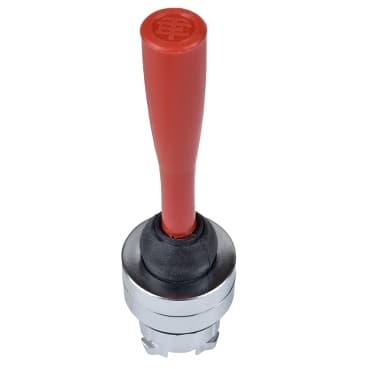

ZB4BB4
Selling Points
- 1The ZB4BB4 features a robust design with high impact resistance up to IK06 rating.
- 2Ensures protection against solid objects, dust, and water ingress.
- 3Compatible with 22mm mounting hole diameter for easy installation.
- 4Equipped with a red actuator for clear visibility in various environments.
- 5Operates effectively from -25°C to 70°C, suitable for diverse industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Head for joystick controller |
Device short name | ZB4 | Bezel material | Chromium plated metal |
Mounting diameter | 0.9 in (22 mm) | Head type | Standard |
Sale per indivisible quantity | 1 | Shape of signaling unit head | Round |
Type of operator | To zero position spring return | Operator profile | Red 54 mm long operating shaft |
Operator direction information | Omnidirectional | Net Weight | 0.128 lb(US) (0.058 kg) |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Operator position information | All positions |
Mechanical durability | 1000000 cycles | Device presentation | Basic element |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Electrical shock protection class | Class I IEC 60536 |
IP degree of protection | IP66 IEC 60529 | NEMA degree of protection | NEMA 13<br />NEMA 4X |
IK degree of protection | IK03 conforming to IEC 50102 | Standards | IEC 60947-5-5<br />CSA C22.2 No 14<br />IEC 60947-5-4<br />IEC 60947-1<br />IEC 60947-5-1<br />UL 508<br />JIS C8201-5-1<br />JIS C8201-1 |
Product Certifications | CSA<br />LROS (Lloyds register of shipping)<br />BV<br />UL Listed<br />DNV | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
