ZB4BC18023

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

37420

In Stock
Last updated: 2025/4/28
View Specifications

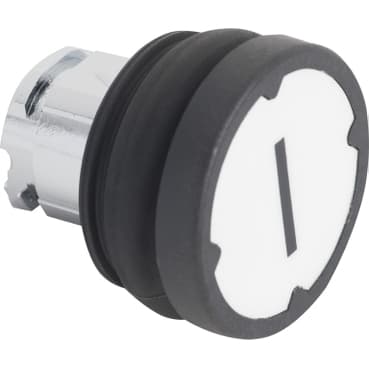

schneider ZB4BC18023

Selling Points

  • 1High Durability: Withstands 10 million cycles of mechanical durability.
  • 2IP69K Protection: Resistant to high-pressure washers and water ingress.
  • 3Vibration Resistance: Compliant with IEC 60068-2-6, ensuring stability in various conditions.
  • 4Wide Temperature Range: Operates between -40°C to 158°F (-40°C to 70°C for storage).
  • 5Ergonomic Design: Flush-mounting solution with a vibrant color palette for improved aesthetics.
Product Details
ZB4BC18023
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Head for push-button
Device short name
ZB4
Bezel material
Chromium plated metal
Head type
Standard
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
CAD overall width
1.5 in (37 mm)
CAD overall height
0.7 in (18.5 mm)
CAD overall depth
1.5 in (37 mm)
Net Weight
0.079 lb(US) (0.036 kg)
Electrical shock protection class
Class I IEC 61140
Shape of signaling unit head
Round
Type of operator
spring return
Operator profile
White flush, type H023 black)
Operator additional information
Vertical mounting
Mechanical durability
10000000 cycles
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
Main group
Harsh environment
Group of product
Flush marked type H023
Marking
Type H023
Colour of marking
Black
Electrical composition code
C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting
Device presentation
Basic element
Ambient Air Temperature for Storage
-40…185 °F (-40…85 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
IP degree of protection
IP66 IEC 60529<br />IP69K<br />IP67<br />IP69
NEMA degree of protection
NEMA 4 UL 508<br />NEMA 13<br />NEMA 12
Resistance to high pressure washer
0.01 psi (90 Pa) 180 °F (82.5 °C)
IK degree of protection
IK06 conforming to IEC 62262
Standards
IEC 60947-5-1<br />IEC 60947-1<br />UL 508<br />CSA C22.2
Product Certifications
CE<br />CSA<br />UL
