Product Model

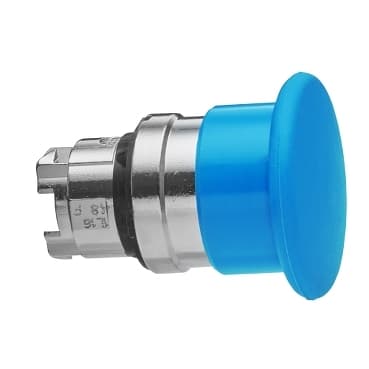

ZB4BC6
Selling Points
- 1Made with chromium-plated metal for high impact and vibration resistance.
- 2Ensures quick and reliable operation with a spring return action.
- 3Dust, water, and vibration resistant, ideal for harsh environments.
- 4Easily integrates into existing machinery with a standard 22mm cutout size.
- 5Functions from -40°C to 70°C, offering versatility in usage.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Head for non-illuminated push-button |
Device short name | ZB4 | Bezel material | Chromium plated metal |
Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
Head type | Standard | Shape of signaling unit head | Round |
Type of operator | spring return | Operator profile | Blue mushroom Ø 40 mm, unmarked |
cap/operator or lens colour | Blue | CAD overall width | 1.6 in (40 mm) |
CAD overall height | 1.6 in (40 mm) | CAD overall depth | 2.05 in (52 mm) |
Mechanical durability | 5000000 cycles | Electrical composition code | C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting |
Device presentation | Basic element | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
Overvoltage category | Class I IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP69<br />IP69K |
NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK06 conforming to IEC 50102 |
Standards | CSA C22.2 No 14<br />EN/IEC 60947-5-5<br />EN/IEC 60947-1<br />EN/IEC 60947-5-4<br />JIS C8201-5-1<br />UL 508<br />EN/IEC 60947-5-1<br />JIS C8201-1 | Product Certifications | BV<br />CSA<br />DNV<br />LROS (Lloyds register of shipping)<br />UL Listed |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
