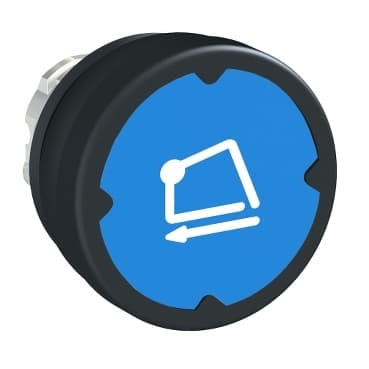

Product Model
ZB4BC68006RA
Selling Points
- 1Durable Design: Built with chromium-plated metal for long-lasting performance.
- 2Harsh Environment Ready: Withstood 3000000 cycles of mechanical durability.
- 3IP66/69K Protection: Dust and water-resistant, suitable for harsh environments.
- 4Spring Return Actuation: Easy operation with a spring return type of operator.
- 5Easy Identification: Blue cap/operator for easy identification in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Head for push-button |
Device short name | ZB4 | Bezel material | Chromium plated metal |
Head type | Standard | Mounting diameter | 0.9 in (22.5 mm) |
Sale per indivisible quantity | 1 | cap/operator or lens colour | Blue |
CAD overall width | 1.5 in (37 mm) | CAD overall height | 0.7 in (18.5 mm) |
CAD overall depth | 1.5 in (37 mm) | Net Weight | 0.079 lb(US) (0.036 kg) |
Electrical shock protection class | Class I IEC 61140 | Shape of signaling unit head | Round |
Type of operator | spring return | Operator profile | Blue flush, type H006 white) |
Operator additional information | Horizontal mounting | Mechanical durability | 3000000 cycles |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 |
Main group | Harsh environment | Group of product | Flush marked type H006 |
Marking | Type H006 | Colour of marking | White |
Electrical composition code | C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | IP degree of protection | IP66 IEC 60529<br />IP69K<br />IP69 |
NEMA degree of protection | NEMA 4 UL 508<br />NEMA 13<br />NEMA 12 | Resistance to high pressure washer | 0.01 psi (90 Pa) 180 °F (82.5 °C) |
IK degree of protection | IK06 conforming to IEC 62262 | Standards | UL 508<br />IEC 60947-5-1<br />IEC 60947-1<br />CSA C22.2 |
Product Certifications | UL<br />CSA<br />CE |
Specifications may be subject to change without notice
