Product Model

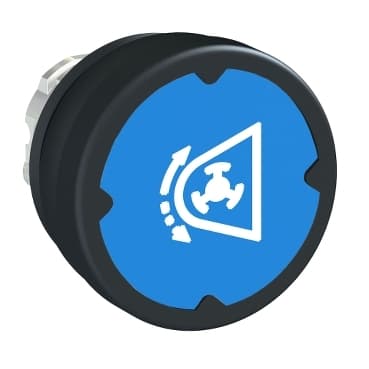

ZB4BC68032RA
Selling Points
- 1Built to withstand challenging conditions with IP66 and IP69K ratings.
- 2Blue color ensures high visibility and easy identification.
- 3Provides responsive operation with a spring return mechanism.
- 4Withstands up to 3 million cycles of mechanical durability.
- 5Compliant with IEC 61140, IEC 60068-2-6, and IEC 60068-2-27 standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Head for push-button |
Device short name | ZB4 | Bezel material | Chromium plated metal |
Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
CAD overall width | 1.5 in (37 mm) | CAD overall height | 0.7 in (18.5 mm) |
CAD overall depth | 1.5 in (37 mm) | Net Weight | 0.079 lb(US) (0.036 kg) |
Electrical shock protection class | Class I IEC 61140 | Shape of signaling unit head | Round |
Type of operator | spring return | Operator profile | Blue flush, type H032 white) |
Operator additional information | Horizontal mounting | Mechanical durability | 3000000 cycles |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 |
Main group | Harsh environment | Group of product | Flush marked type H032 |
Marking | Type H032 | Colour of marking | White |
Electrical composition code | C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | IP degree of protection | IP66 IEC 60529<br />IP69K<br />IP69 |
NEMA degree of protection | NEMA 4 UL 508<br />NEMA 13<br />NEMA 12 | Resistance to high pressure washer | 0.01 psi (90 Pa) 180 °F (82.5 °C) |
IK degree of protection | IK06 conforming to IEC 62262 | Standards | CSA C22.2<br />IEC 60947-1<br />IEC 60947-5-1<br />UL 508 |
Product Certifications | CSA<br />CE<br />UL |
Specifications may be subject to change without notice
