Product Model

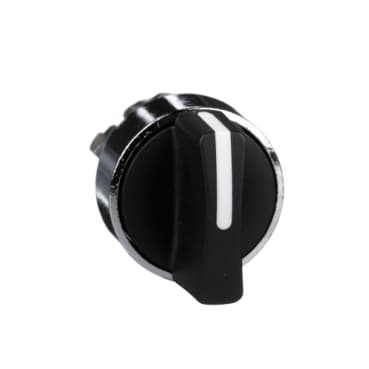

ZB4BD2
Selling Points
- 1Made of chromium-plated metal for strength and durability.
- 2Meets the requirements of the majority of industrial applications.
- 3Conforms to IEC, UL, CSA, and CE standards.
- 4Quick and easy to install with a standard handle.
- 5Suitable for electrical distribution panels, HVAC systems, and textile machinery control.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Head for selector switch |
Device short name | ZB4 | Bezel material | Chromium plated metal |
Mounting diameter | 0.9 in (22 mm) | Head type | Standard |
Sale per indivisible quantity | 1 | Shape of signaling unit head | Round |
Type of operator | stay put | Operator profile | Black standard handle |
Operator position information | 2 positions 90° | CAD overall width | 1.1 in (29 mm) |
CAD overall height | 1.1 in (29 mm) | CAD overall depth | 1.7 in (44 mm) |
Net Weight | 0.09 lb(US) (0.04 kg) | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
Mechanical durability | 1000000 cycles | Electrical composition code | C3 6 single front mounting<br />C4 6 single and double front mounting<br />C5 5 single front mounting<br />C6 5 single and double front mounting<br />C7 4 single front mounting<br />C8 4 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting |
Device presentation | Basic element | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
Overvoltage category | Class I IEC 60536 | IP degree of protection | IP67 IEC 60529<br />IP69<br />IP69K |
NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK06 conforming to IEC 50102 |
Standards | JIS C8201-5-1<br />IEC 60947-5-1<br />IEC 60947-5-4<br />IEC 60947-1<br />CSA C22.2 No 14<br />IEC 60947-5-5<br />UL 508<br />JIS C8201-1 | Product Certifications | CSA<br />DNV<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
