ZB4BH03837

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

37856

In Stock
Last updated: 2025/4/29
View Specifications

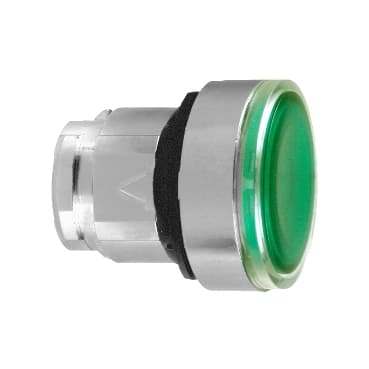

schneider ZB4BH03837

Selling Points

  • 1High-Impact and Vibration Resistance: Designed with a metal bezel for durability in demanding environments.
  • 2Standard 22mm Cutout: Fits seamlessly into standard cutouts, ensuring easy installation.
  • 3Green Flush Illumination: Provides clear visibility with its green flush illumination, enhancing user experience.
  • 4Push-Push Operation: Simple and reliable push-push operation for efficient use.
  • 5Integral LED Design: Equipped with an integral LED for enhanced visibility in low-light conditions.
Product Details
ZB4BH03837
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Head for illuminated push-button
Product Compatibility
Integral LED
Device short name
ZB4
Bezel material
Black metal
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Round
Type of operator
push-push
Operator profile
Green flush, unmarked
Operator additional information
For insertion of legend
CAD overall width
1.1 in (29 mm)
CAD overall height
1.1 in (29 mm)
CAD overall depth
1.2 in (30 mm)
Net Weight
0.057 lb(US) (0.026 kg)
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Mechanical durability
500000 cycles
Electrical composition code
M5 2 single front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED
Device presentation
Basic element
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Electrical shock protection class
Class I IEC 60536
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class I IEC 60536
IP degree of protection
IP66 IEC 60529<br />IP67<br />IP69<br />IP69K
NEMA degree of protection
NEMA 13<br />NEMA 4X
IK degree of protection
IK06 conforming to IEC 50102
Standards
JIS C8201-5-1<br />EN/IEC 60947-5-4<br />CSA C22.2 No 14<br />EN/IEC 60947-5-1<br />EN/IEC 60947-1<br />EN/IEC 60947-5-5<br />UL 508<br />JIS C8201-1
Product Certifications
DNV<br />GL<br />CSA<br />LROS (Lloyds register of shipping)<br />UL Listed<br />BV
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
