Product Model
ZB4BH67
Selling Points
- 1High-Quality Automation Component: Designed for reliable performance in various industrial applications.
- 212-Month Guarantee: Ensures long-term durability and peace of mind.
- 3Immediate Shipment: Available for immediate delivery to meet your urgent needs.
- 4Worldwide Delivery: Conveniently shipped globally to any location.
- 5Refurbished Parts Available: Cost-effective option with refurbished parts available for purchase.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|

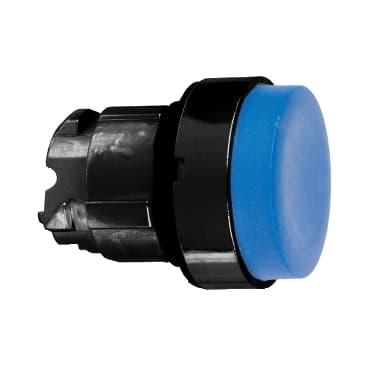

Range of Product | Harmony XB4 | Product or Component Type | Head for non-illuminated push-button |
Device short name | ZB4 | Bezel material | Black metal |
Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Round | Type of operator | push-push |
Operator profile | Blue projecting, unmarked | CAD overall width | 1.1 in (29 mm) |
CAD overall height | 1.1 in (29 mm) | CAD overall depth | 1.3 in (33 mm) |
Mechanical durability | 5000000 cycles | Electrical composition code | C11 3 single front mounting |
Device presentation | Basic element | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
Overvoltage category | Class I IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K |
NEMA degree of protection | NEMA 13 | IK degree of protection | IK06 conforming to IEC 50102 |
Standards | EN/IEC 60947-5-5<br />UL 508<br />EN/IEC 60947-5-4<br />EN/IEC 60947-1<br />JIS C8201-5-1<br />EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />JIS C8201-1 | Product Certifications | CSA<br />BV<br />LROS (Lloyds register of shipping)<br />GL<br />UL Listed<br />DNV |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
