schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZB4BK14637

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

23880

In Stock
Last updated: 2025/4/29
View Specifications

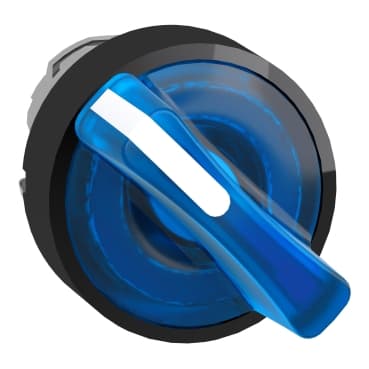

schneider ZB4BK14637

Selling Points

  • 1High-quality illumination: The ZB4BK14637 features integral LED illumination for clear visibility in various environments.
  • 2Durable construction: Built with black metal for robustness and longevity in industrial settings.
  • 3Easy operation: Equipped with a blue handle for intuitive selection between two positions.
  • 4Universal compatibility: Suitable for a wide range of applications due to its universal LED design.
  • 5Reliable performance: Ensures consistent operation in demanding industrial automation systems.
Product Details
ZB4BK14637
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Head for illuminated selector switch
Product Compatibility
Universal LED
Device short name
ZB4
Bezel material
Black metal
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Round
Type of operator
Right to left spring return
Operator profile
Blue standard handle
Operator position information
2 positions 90°
CAD overall width
1.1 in (29 mm)
CAD overall height
1.1 in (29 mm)
CAD overall depth
1.7 in (43 mm)
Net Weight
0.082 lb(US) (0.037 kg)
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Mechanical durability
500000 cycles
Electrical composition code
M3 4 single front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED<br />M4 4 single and double front mounting integral LED
Device presentation
Basic element
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class I IEC 60536
IP degree of protection
IP66 IEC 60529<br />IP67<br />IP69<br />IP69K
NEMA degree of protection
NEMA 13<br />NEMA 4X
IK degree of protection
IK04 conforming to IEC 50102
Standards
UL 508<br />JIS C8201-5-1<br />EN/IEC 60947-1<br />EN/IEC 60947-5-5<br />EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />EN/IEC 60947-5-4<br />JIS C8201-1
Product Certifications
UL Listed<br />CSA<br />LROS (Lloyds register of shipping)<br />BV<br />DNV<br />GL
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
