ZB4BK17437

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

23699

In Stock
Last updated: 2025/4/28
View Specifications

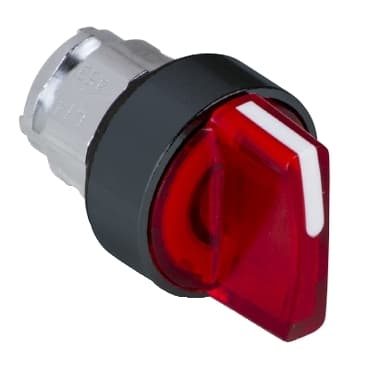

schneider ZB4BK17437

Selling Points

  • 1Highly Durable: Resistant to high pressure washers up to 7,000,000 Pa at 55 °C.
  • 2Versatile Connectivity: Compatible with various connection types including screw clamp, connector, Faston connector, spring terminal, or printed circuit board.
  • 3Robust Design: Made from black metal with a chromium-plated metal bezel for enhanced durability.
  • 4Easy Installation: Quick and easy assembly and disassembly for seamless integration.
  • 5Environmental Compliance: Meets IP67 and IP69K standards for protection against harsh environments.
Product Details
ZB4BK17437
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Head for illuminated selector switch
Product Compatibility
Integral LED
Device short name
ZB4
Bezel material
Black metal
Head type
Standard
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Round
Type of operator
Left to centre spring return
Operator profile
Red standard handle
Operator position information
3 positions +/- 45°
CAD overall width
1.1 in (29 mm)
CAD overall height
1.1 in (29 mm)
CAD overall depth
1.7 in (43 mm)
Net Weight
0.079 lb(US) (0.036 kg)
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Mechanical durability
500000 cycles
Electrical composition code
M3 4 single front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED<br />M4 4 single and double front mounting integral LED
Device presentation
Basic element
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class I IEC 60536
IP degree of protection
IP66 IEC 60529<br />IP67<br />IP69<br />IP69K
NEMA degree of protection
NEMA 13<br />NEMA 4X
IK degree of protection
IK04 conforming to IEC 50102
Standards
EN/IEC 60947-5-4<br />EN/IEC 60947-5-1<br />UL 508<br />JIS C8201-5-1<br />EN/IEC 60947-5-5<br />CSA C22.2 No 14<br />EN/IEC 60947-1<br />JIS C8201-1
Product Certifications
BV<br />UL Listed<br />DNV<br />CSA<br />LROS (Lloyds register of shipping)<br />GL
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
