Product Model

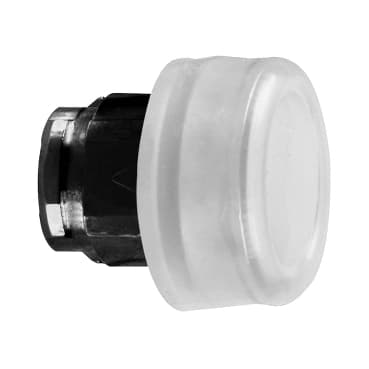

ZB4BP187
Selling Points
- 1Rated up to IK06 for robust performance in harsh environments.
- 2Operates from -40°C to +70°C, suitable for outdoor applications.
- 3Meets IEC, UL, CCC, EAC, JIS, and marine certifications.
- 4IP66, IP67, IP68, IP69, and IP69K ratings ensure protection against solid objects, dust, and water.
- 5Designed to perform up to 10 million operations, reducing maintenance needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Head for non-illuminated push-button |
Device short name | ZB4 | Product compatibility | not compatible with legend holder |
Bezel material | Black metal | Mounting diameter | 0.9 in (22 mm) |
Sale per indivisible quantity | 1 | Shape of signaling unit head | Round |
Type of operator | spring return | Operator profile | White flush, unmarked |
Operator additional information | Clear boot for insertion of protected legend within head | CAD overall width | 1.2 in (30 mm) |
CAD overall height | 1.2 in (30 mm) | CAD overall depth | 1.5 in (37 mm) |
Mechanical durability | 10000000 cycles | Electrical composition code | C3 6 single front mounting<br />C4 6 single and double front mounting<br />C14 2 single front mounting |
Device presentation | Basic element | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
Overvoltage category | Class I IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67 |
NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK06 conforming to IEC 50102 |
Standards | EN/IEC 60947-1<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />UL 508<br />EN/IEC 60947-5-5<br />EN/IEC 60947-5-4<br />EN/IEC 60947-5-1<br />JIS C8201-1 | Product Certifications | UL Listed<br />DNV<br />LROS (Lloyds register of shipping)<br />CSA<br />BV<br />GL |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
