schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZB4BS964K

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

23956

In Stock
Last updated: 2025/4/30
View Specifications

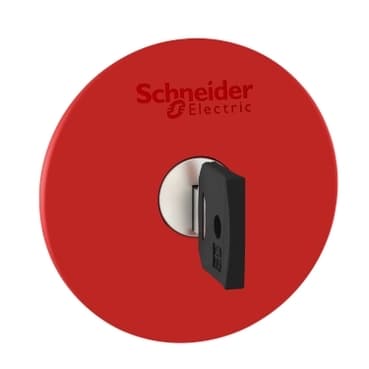

schneider ZB4BS964K

Selling Points

  • 1Red Ø60 Emergency Stop Head: Designed for immediate shutdown with a trigger and latching key release.
  • 2Chromium-Plated Metal Bezel: Durable and resistant to high-pressure washers.
  • 3Robust Construction: Meets IP66 and IP67 protection standards, ensuring reliability in harsh environments.
  • 4Easy Operation: Ergonomic design with a round shape and unmarked red mushroom head for easy identification.
  • 5Comprehensive Compatibility: Part of the Harmony XB4 series, offering a wide range of modular control and signaling units.
Product Details
ZB4BS964K
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Head for emergency switching off push-button
Device short name
ZB4
Bezel material
Chromium plated metal
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Round
Type of operator
trigger action and mechanical latching
Reset
Key release
Operator profile
Red mushroom Ø 60 mm, unmarked
Type of Keylock
Special key
Additional information
4 multichips
Key withdrawal position
Center
Head type
Standard
CAD overall width
2.4 in (60 mm)
CAD overall height
2.4 in (60 mm)
CAD overall depth
3.1 in (79 mm)
Net Weight
0.260 lb(US) (0.118 kg)
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Mechanical durability
300000 cycles
Electrical composition code
C7 4 single front mounting<br />C8 4 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting<br />C10 4 single and double front mounting
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Electrical shock protection class
Class I IEC 61140
IP degree of protection
IP66 IEC 60529<br />IP67<br />IP69<br />IP69K
NEMA degree of protection
NEMA 13<br />NEMA 4X<br />NEMA 4<br />NEMA 12
IK degree of protection
IK03 conforming to IEC 50102
Standards
UL 508<br />JIS C8201-5-1<br />GB 14048.5<br />EN/ISO 13850<br />IEC 60364-5-53<br />CSA C22.2 No 14<br />EN/IEC 60947-5-5<br />EN/IEC 60204-1<br />EN/IEC 60947-5-4<br />EN/IEC 60947-1<br />EN/IEC 60947-5-1<br />JIS C8201-1
Product Certifications
CSA<br />LROS (Lloyds register of shipping)<br />UL Listed<br />BV<br />DNV<br />GL
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
