Product Model

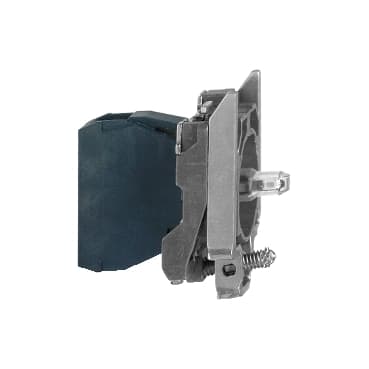

ZB4BV18B3
Selling Points
- 1Integral LED 24V AC/DC: Features an integral LED for reliable illumination.
- 2Green Flashing: Provides a green flashing light for clear visibility.
- 3Compact Design: Measures 1.9 in (47 mm) in height and 1.5 in (37 mm) in depth.
- 4Durable Construction: Made from polycarbonate material for durability.
- 5Compliant with Standards: Meets CE, UL, and CSA standards for safety and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Complete body/light block assembly |
Device short name | ZB4 | Fixing collar material | Zamak |
Sale per indivisible quantity | 1 | Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end<br />Screw clamp terminals, >= 1 x 0.22 mm² without cable end |
Light source | Protected LED | Bulb base | Integral LED |
Light source colour | Green | [Us] rated supply voltage | 24 V AC/DC 50/60 Hz |
CAD overall width | 1.2 in (30 mm) | CAD overall height | 1.9 in (47 mm) |
CAD overall depth | 1.5 in (37 mm) | Terminals description ISO n°1 | (X1-X2)PL |
Net Weight | 0.119 lb(US) (0.054 kg) | Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) EN 60947-1 |
Shape of screw head | Cross Philips no 1<br />Cross pozidriv No 1<br />Slotted flat Ø 4 mm<br />Slotted flat Ø 5.5 mm | [Ui] rated insulation voltage | 600 V 3)EN 60947-1 |
[Uimp] rated impulse withstand voltage | 6 kV EN 60947-1 | Signalling type | Flashing |
Supply voltage limits | 19.2…30 V DC<br />21.6…26.4 V AC | current consumption | 18 mA |
Service life | 100000 h at rated voltage and 25 °C | Surge withstand | 1 kV IEC 61000-4-5 |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Electrical shock protection class | Class I IEC 60536 |
Standards | EN/IEC 60947-5-1<br />EN/IEC 60947-1<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />UL 508<br />EN/IEC 60947-5-5<br />EN/IEC 60947-5-4<br />JIS C8201-1 | Product Certifications | CSA<br />UL Listed<br />GL<br />BV<br />LROS (Lloyds register of shipping)<br />DNV |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Resistance to fast transients | 2 kV IEC 61000-4-4 | Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 |
Resistance to electrostatic discharge | 6 kV on contact (on metal parts) IEC 61000-2-6<br />8 kV in free air (in insulating parts) IEC 61000-2-6 | Electromagnetic emission | Class B IEC 55011 |
Specifications may be subject to change without notice
