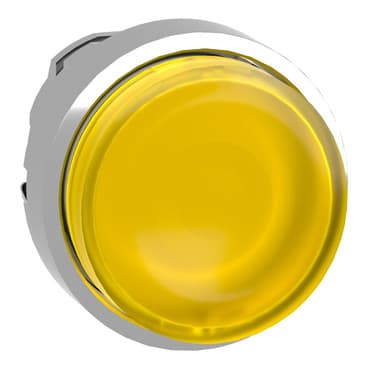

schneider ZB4BW183

Selling Points

  • 1Robust and Durable: Metal bezel for high impact and vibration resistance.
  • 2Easy Installation: Quick and easy assembly and disassembly.
  • 3Versatile Connectivity: Compatible with various connection types (screw clamp, connector, Faston connector, spring terminal, or printed circuit board).
  • 4High-Performance: Designed for harsh environments with an IP66 and IP69 rating.
  • 5Eco-Friendly Packaging: Made with recycled cardboard, aligning with Schneider Electric's "Use Better, Use Longer, Use Again" campaign.
Product Details
ZB4BW183
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Head for illuminated push-button
Device short name
ZB4
Product Compatibility
Universal LED
Bezel material
Chromium plated metal
Mounting diameter
0.9 in (22.5 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Round
Type of operator
spring return
Operator profile
Yellow projecting, unmarked
Operator additional information
With plain lens
cap/operator or lens colour
Yellow
CAD overall width
1.1 in (29 mm)
CAD overall height
1.1 in (29 mm)
CAD overall depth
1.3 in (33 mm)
Net Weight
0.064 lb(US) (0.029 kg)
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Mechanical durability
10000000 cycles
Electrical composition code
M1 6 single front mounting integral LED<br />M2 6 single and double front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED
Device presentation
Basic sub-assemblies
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Overvoltage category
Class I IEC 60536
IP degree of protection
IP66 IEC 60529<br />IP69<br />IP69K
NEMA degree of protection
NEMA 13<br />NEMA 4X
IK degree of protection
IK06 conforming to IEC 62262
Standards
JIS C8201-5-1<br />UL 508<br />IEC 60947-5-5<br />CSA C22.2 No 14<br />IEC 60947-5-4<br />IEC 60947-1<br />IEC 60947-5-1<br />JIS C8201-1
Product Certifications
CSA<br />LROS (Lloyds register of shipping)<br />BV<br />UL Listed<br />DNV
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
