Product Model

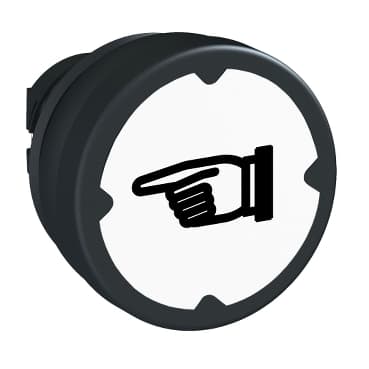

ZB5AC18058
Selling Points
- 1Withstands up to 10 million cycles, ensuring long-lasting performance.
- 2Supports various contact configurations (C1, C2, C11, C15, SF1, SR1) for versatile applications.
- 3Resistant to high-pressure washers and water ingress, suitable for harsh environments.
- 4Easy operation with a spring return mechanism for smooth and consistent performance.
- 5Measuring 22 mm in diameter and 37 mm in width, perfect for space-constrained installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Head for push-button |
Device short name | ZB5 | Bezel material | Black plastic |
Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Round | Type of operator | spring return |
Operator additional information | Vertical mounting | CAD overall width | 1.5 in (37 mm) |
CAD overall height | 0.7 in (18.5 mm) | CAD overall depth | 1.5 in (37 mm) |
Net Weight | 0.053 lb(US) (0.024 kg) | Resistance to high pressure washer | 0.01 psi (90 Pa) 180 °F (82.5 °C) |
Operator profile | White flush, type H058 black) | Mechanical durability | 10000000 cycles |
Electrical composition code | C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting<br />SF1 3 single front mounting<br />SR1 3 single rear mounting | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Electrical shock protection class | Class II IEC 61140 |
IP degree of protection | IP66 IEC 60529<br />IP69K<br />IP67 | NEMA degree of protection | NEMA 4 UL 508<br />NEMA 13<br />NEMA 12 |
IK degree of protection | IK03 conforming to IEC 62262 | Standards | IEC 60947-5-1<br />IEC 60947-1<br />UL 508<br />CSA C22.2 |
Product Certifications | CSA<br />UL<br />CE | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 |
