Product Model

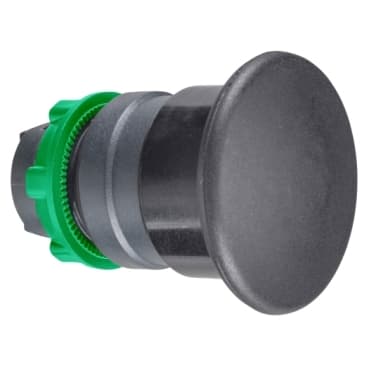

ZB5AC2TQ
Selling Points
- 1Robust Design: Durable and designed to withstand harsh environments.
- 2Versatile Connections: Compatible with screw clamp, connector, Faston connector, spring terminal, or printed circuit board.
- 3Easy Assembly: Quick and easy assembly and disassembly.
- 4Environmental Sustainability: Made with recycled cardboard packaging and part of Schneider Electric's "Use Better, Use Longer, Use Again" campaign.
- 5High-Quality Material: Constructed with high-quality materials for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Head for non-illuminated push-button |
Device short name | ZB5 | Bezel material | Dark grey plastic |
Head type | Standard | Mounting diameter | 0.9 in (22 mm) |
Sale per indivisible quantity | 100 | Shape of signaling unit head | Round |
Type of operator | spring return | Operator profile | Black mushroom Ø 40 mm, unmarked |
CAD overall width | 1.6 in (40 mm) | CAD overall height | 1.6 in (40 mm) |
CAD overall depth | 2.05 in (52 mm) | Net Weight | 0.101 lb(US) (0.046 kg) |
Mechanical durability | 5000000 cycles | Station name | XALD 1 cut-out<br />XALK 1 cut-out |
Electrical composition code | C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting<br />SF1 3 single front mounting<br />SR1 3 single rear mounting | compatibility code | ZB5 |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class II IEC 60536 |
IP degree of protection | IP66 IEC 60529<br />IP69<br />IP69K | NEMA degree of protection | NEMA 13<br />NEMA 4X |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | IK degree of protection | IK03 conforming to IEC 50102 |
Standards | JIS C8201-5-1<br />CSA C22.2 No 14<br />IEC 60947-5-1<br />IEC 60947-1<br />UL 508<br />IEC 60947-5-4<br />JIS C8201-1 | Product Certifications | BV<br />LROS (Lloyds register of shipping)<br />DNV<br />CSA |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
