Product Model

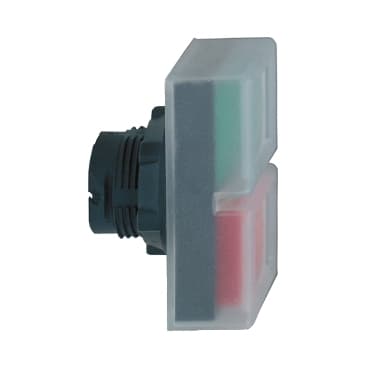

ZB5AL9334
Selling Points
- 1High Durability: Withstands 1,000,000 operating cycles, ensuring long-lasting performance.
- 2IP66 Protection: Resistant to high-pressure washers and dust, perfect for harsh environments.
- 3Versatile Design: Rectangular shape with green flush and red projecting pushbuttons for diverse applications.
- 4Mechanical Reliability: Compliant with IEC 60536 and IEC 60529 standards for electric shock protection and IP degree of protection.
- 5Easy Installation: Simple mounting process with a diameter of 22 mm, suitable for various industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Head for double-headed push-button |
Device short name | ZB5 | Bezel material | Plastic |
Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Rectangular | Type of operator | spring return |
Operator profile | Green flush, unmarked<br />Red projecting, unmarked | Operators description | Green unmarked - red unmarked |
CAD overall width | 1.2 in (30 mm) | CAD overall height | 2.0 in (50 mm) |
CAD overall depth | 1.4 in (35 mm) | Net Weight | 0.057 lb(US) (0.026 kg) |
Colour of marking | Black marking when white caps<br />White marking when green, red or black caps | Mechanical durability | 1000000 cycles |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Electrical shock protection class | Class II IEC 60536 |
IP degree of protection | IP66 IEC 60529 | NEMA degree of protection | NEMA 13<br />NEMA 4X |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | IK degree of protection | IK03 conforming to IEC 50102 |
Standards | EN/IEC 60947-1<br />UL 508<br />EN/IEC 60947-5-4<br />JIS C8201-5-1<br />EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />JIS C8201-1 | Product Certifications | DNV<br />CSA<br />GL<br />LROS (Lloyds register of shipping)<br />UL Listed<br />BV |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
