Product Model

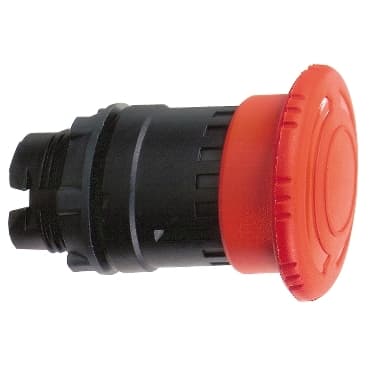

ZB5AS54TQ
Selling Points
- 1Withstands 300,000 cycles for reliable operation.
- 230mm CAD overall height and 57mm CAD overall depth for space efficiency.
- 3Weighs 0.097 lb (0.044 kg) for easy handling.
- 4Schneider Electric aims for Net Zero status by 2050 through sustainable practices.
- 5Meets industry standards with detailed CAD dimensions and weight specifications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Head |
Product destination | Emergency stop push-button | Device short name | ZB5 |
Bezel material | Plastic | Head type | Standard |
Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 10 |
Shape of signaling unit head | Round | Type of operator | mechanical latching |
Reset | Turn to release | Operator profile | Red mushroom Ø 40 mm, unmarked |
CAD overall width | 1.2 in (30 mm) | CAD overall height | 1.2 in (30 mm) |
CAD overall depth | 2.2 in (57 mm) | Net Weight | 0.097 lb(US) (0.044 kg) |
Mechanical durability | 300000 cycles | Station name | XALD 1 cut-out<br />XALK 1 cut-out |
Electrical composition code | C7 4 single front mounting<br />C8 4 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting<br />SF1 3 single front mounting<br />SR1 3 single rear mounting<br />C10 4 single and double front mounting | compatibility code | ZB5 |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class II IEC 60536 |
IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K | NEMA degree of protection | NEMA 13<br />NEMA 4X |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | IK degree of protection | IK03 conforming to IEC 50102 |
Product Certifications | DNV<br />GL<br />UL Listed<br />CSA<br />LROS (Lloyds register of shipping)<br />BV | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
