Product Model

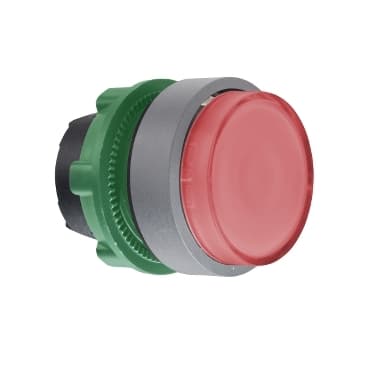

ZB5AW14C0
Selling Points
- 1Designed to withstand harsh environments with an IP66 rating, ensuring dust, water, and impact resistance.
- 2Snap-fit assembly for quick and simple installation on compatible pushbutton units and contact blocks.
- 3Clearly distinguishable visually and by touch due to its projecting element, minimizing errors in machine control.
- 4Compatible with various mounting options including screw clamp terminals, plug-in connectors, and printed circuit boards.
- 5Impact-resistant and vibration-resistant, making it ideal for operation in demanding industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Head for illuminated push-button |
Device short name | ZB5 | Product Compatibility | BA 9s |
Bezel material | Plastic colour plated grey | Mounting diameter | 0.9 in (22 mm) |
Sale per indivisible quantity | 1 | Head type | Standard |
Shape of signaling unit head | Round | Type of operator | spring return |
Operator profile | Red projecting, unmarked | Operator additional information | With plain lens |
CAD overall width | 1.1 in (29 mm) | CAD overall height | 1.1 in (29 mm) |
CAD overall depth | 1.3 in (32 mm) | Net Weight | 0.037 lb(US) (0.017 kg) |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Mechanical durability | 10000000 cycles |
Station name | XALD 1...5 cut-outs<br />XALK 2...5 cut-outs | Cap/operator or lens colour | Red |
Marking | Unmarked | Electrical composition code | M7 6 single front mounting BA 9s<br />M8 6 single and double front mounting BA 9s<br />M9 2 single front mounting BA 9s and transformer<br />MF2 2 single front mounting BA 9s |
Device presentation | Basic sub-assemblies | Protective treatment | TC |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…131 °F (-40…55 °C) |
Overvoltage category | Class II IEC 60536 | IP degree of protection | IP66 IEC 60529 |
NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK05 conforming to EN 50102 |
Standards | UL 508<br />EN/IEC 60947-5-1<br />EN/IEC 60947-5-4<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />GB 14048.5<br />EN/IEC 60947-1<br />JIS C8201-1 | Product Certifications | BV<br />UL Listed<br />LROS (Lloyds register of shipping)<br />GL<br />CSA<br />DNV |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
