schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZB5AW813743

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

25966

In Stock
Last updated: 2025/5/1
View Specifications

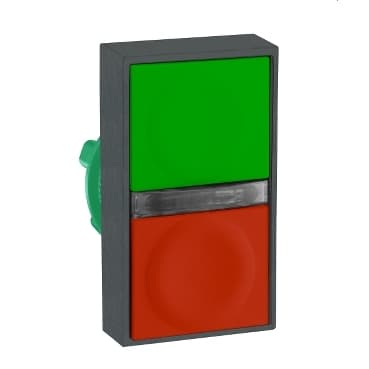

schneider ZB5AW813743

Selling Points

  • 1Conforms to IEC 60947-5-4 standards for electrical reliability with a failure rate of 10^-8.
  • 2Withstands ambient air temperatures from -40 to +158 °F (-40 to +70 °C) and operates between -13 to +158 °F (-25 to +70 °C).
  • 3Meets IEC 60068-2-27 standards for shock resistance with half sine wave 18 ms, 30 gn and 11 ms, 50 gn.
  • 4Compliant with IEC 61000-4-3 for resistance to electromagnetic fields and IEC 61000-4-4 for resistance to fast transients.
  • 5Includes LED pilot lights with voltage limits of 6 - 30 Vac/Vdc and current draw of 15 mA.
Product Details
ZB5AW813743
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB5
Product or Component Type
Head for illuminated double-headed push-button
Product Compatibility
Integral LED
Device short name
ZB5
Bezel material
Plastic
Head type
Standard
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Rectangular
Type of operator
spring return
Operator profile
Green flush, unmarked<br />Red flush, unmarked
Operators description
Green unmarked - red unmarked
CAD overall width
1.1 in (28 mm)
CAD overall height
1.9 in (47 mm)
CAD overall depth
1.3 in (32 mm)
Net Weight
0.049 lb(US) (0.022 kg)
Mechanical durability
1000000 cycles
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-13…158 °F (-25…70 °C)
Electrical shock protection class
Class II IEC 60536
IP degree of protection
IP40
NEMA degree of protection
NEMA 13<br />NEMA 4X
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
IK degree of protection
IK05 conforming to IEC 50102
Standards
UL 508<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />EN/IEC 60947-5-1<br />EN/IEC 60947-5-4<br />EN/IEC 60947-1<br />JIS C8201-1
Product Certifications
LROS (Lloyds register of shipping)<br />GL<br />BV<br />DNV<br />CSA<br />UL Listed
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
