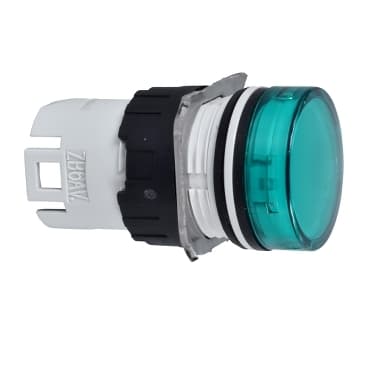

schneider ZB6AV3

Selling Points

  • 1High-Quality Green LED: The ZB6AV3 features a reliable and energy-efficient green LED.
  • 2Compact Design: With a diameter of 16mm, it fits seamlessly into various control panels.
  • 3IP65 Protection: Ensures the pilot light is resistant to dust and water, making it durable in harsh environments.
  • 4Compliance with International Standards: Meets EN/IEC 60947-1, EN/IEC 60947-5-1, and EN/IEC 60947-5-5 standards.
  • 5Sustainable and Eco-Friendly: Part of Schneider Electric's Green Premium product line, ensuring compliance with the latest environmental regulations.
Product Details
ZB6AV3
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB6
Product or Component Type
Head for pilot light
Product Compatibility
Integral LED
Device short name
ZB6
Bezel material
Plastic
Mounting diameter
0.6 in (16 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Round
cap/operator or lens colour
Green
CAD overall width
0.7 in (18 mm)
CAD overall height
0.7 in (18 mm)
CAD overall depth
1.3 in (33 mm)
Net Weight
0.033 lb(US) (0.015 kg)
Protective treatment
TC
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-13…158 °F (-25…70 °C)
Electrical shock protection class
Class II IEC 61140
IP degree of protection
IP65 IEC 60529
NEMA degree of protection
NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 13 CSA C22.2 No 94<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94
Standards
EN/IEC 60947-5-5<br />CSA C22.2 No 14<br />JIS C 4520<br />UL 508<br />JIS C 852<br />EN/IEC 60947-1<br />EN/IEC 60947-5-1
Product Certifications
CCC<br />CSA<br />UL<br />GOST
Vibration resistance
+/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
