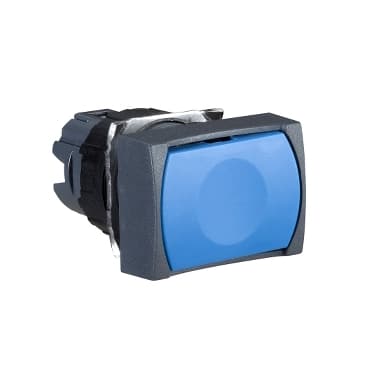

schneider ZB6DA6

Selling Points

  • 1High-Quality Material: Made from durable plastic with a blue flush, unmarked operator profile.
  • 2Environmental Compliance: Part of Schneider Electric's Green Premium products, ensuring best-in-class environmental performance.
  • 3Technical Specifications: 16mm mounting diameter, rectangular shape, and spring return type.
  • 4Enhanced Safety Features: IP65 degree of protection and compliance with IEC 61140 for electrical shock protection.
  • 5Versatile Compatibility: Compatible with various applications and systems, including the Harmony XB6 series.
Product Details
ZB6DA6
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB6
Product or Component Type
Head for non-illuminated push-button
Device short name
ZB6
Bezel material
Plastic
Mounting diameter
0.6 in (16 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Rectangular
Type of operator
spring return
Operator profile
Blue flush, unmarked
CAD overall width
0.9 in (24 mm)
CAD overall height
0.7 in (18 mm)
CAD overall depth
1.3 in (33 mm)
Net Weight
0.035 lb(US) (0.016 kg)
Protective treatment
TC
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-13…158 °F (-25…70 °C)
Electrical shock protection class
Class II IEC 61140
IP degree of protection
IP65 IEC 60529
NEMA degree of protection
NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 13 CSA C22.2 No 94<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94
Standards
EN/IEC 60947-5-1<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />EN/IEC 60947-1<br />UL 508<br />JIS C 852<br />EN/IEC 60947-5-5<br />JIS C8201-1
Product Certifications
CCC<br />GOST<br />CSA<br />UL
Vibration resistance
+/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
