schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZB6DA9

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

26870

In Stock
Last updated: 2025/5/1
View Specifications

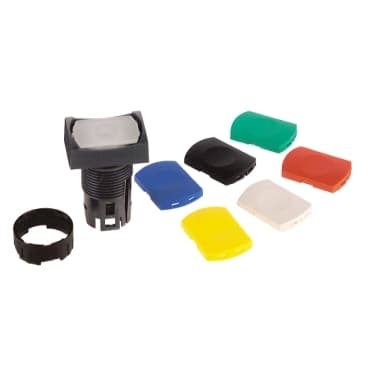

schneider ZB6DA9

Selling Points

  • 1Durable Design: Built with plastic material, ensuring long-lasting performance.
  • 2Versatile Application: Suitable for various applications with 6 color cap options.
  • 3High Protection: Compliant with IP65 and NEMA 13 standards for electrical shock protection.
  • 4Easy Installation: Rectangular shape with a mounting diameter of 16 mm, easy to integrate into PCBs.
  • 5Compliance Standards: Meets IEC 60947-5-1, UL 508, and CSA C22.2 No. 94 standards for safety and reliability.
Product Details
ZB6DA9
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB6
Product or Component Type
Head for non-illuminated push-button
Device short name
ZB6
Bezel material
Plastic
Mounting diameter
0.6 in (16 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Rectangular
Type of operator
spring return
Operator profile
6 colors choice flush, unmarked
Operator additional information
With set of 6 color cap
CAD overall width
0.9 in (24 mm)
CAD overall height
0.7 in (18 mm)
CAD overall depth
1.3 in (33 mm)
Net Weight
0.035 lb(US) (0.016 kg)
Protective treatment
TC
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-13…158 °F (-25…70 °C)
Electrical shock protection class
Class II IEC 61140
IP degree of protection
IP65 IEC 60529
NEMA degree of protection
NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 13 CSA C22.2 No 94<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94
Standards
EN/IEC 60947-5-5<br />UL 508<br />JIS C 852<br />EN/IEC 60947-5-1<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />EN/IEC 60947-1<br />JIS C8201-1
Product Certifications
CSA<br />UL<br />GOST<br />CCC
Vibration resistance
+/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
