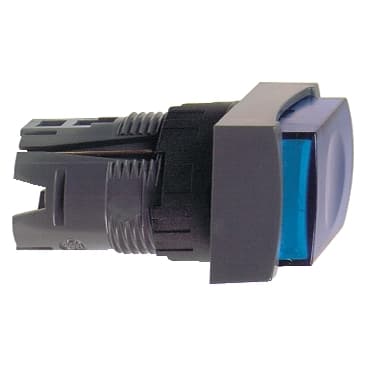

schneider ZB6DE6

Selling Points

  • 1Blue Rectangular Design: The ZB6DE6 features a blue projecting, unmarked operator profile in a rectangular shape.
  • 2Integral LED Illumination: Equipped with integral LED for enhanced visibility in various environments.
  • 3Spring Return Mechanism: Designed with a spring return operator for easy and reliable operation.
  • 4IP 65 Protection: Offers IP 65 degree of protection, ensuring durability against solid particles and water.
  • 5Compact Size: Measuring 16 mm in diameter, ideal for small electronic equipment and control panels.
Product Details
ZB6DE6
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB6
Product or Component Type
Head for illuminated push-button
Product Compatibility
Integral LED
Device short name
ZB6
Bezel material
Plastic
Mounting diameter
0.6 in (16 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Rectangular
Type of operator
spring return
Operator profile
Blue projecting, unmarked
CAD overall width
0.9 in (24 mm)
CAD overall height
0.7 in (18 mm)
CAD overall depth
1.4 in (36 mm)
Net Weight
0.035 lb(US) (0.016 kg)
Protective treatment
TC
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-13…158 °F (-25…70 °C)
Electrical shock protection class
Class II IEC 61140
IP degree of protection
IP65 IEC 60529
NEMA degree of protection
NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94<br />NEMA 13 CSA C22.2 No 94
Standards
EN/IEC 60947-5-1<br />EN/IEC 60947-5-5<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />UL 508<br />JIS C 852<br />EN/IEC 60947-1<br />JIS C8201-1
Product Certifications
CCC<br />CSA<br />GOST<br />UL
Vibration resistance
+/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
