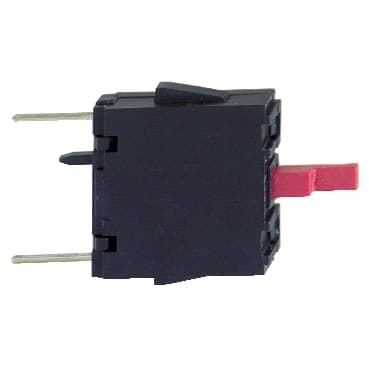

Product Model
ZBE7026
Selling Points
- 1Designed to withstand frequent use with a failure rate of less than 10^-8 at 17V and 5mA.
- 2Built to resist mechanical shock and vibration, ensuring long-lasting performance.
- 3Suitable for general-purpose or specific applications, including low current, standard, or high-power switching.
- 4Simple to install with screw clamp terminals, making it a convenient choice for various electrical setups.
- 5Compatible with a wide range of electrical systems, including those requiring high insulation voltage and impulse withstand voltage.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4<br />Harmony XB5 | Product or Component Type | Contact block |
Device short name | ZBE | Sale per indivisible quantity | 5 |
IP degree of protection | IP20 IEC 60529 | Contact operation | Slow-break |
Contact block type | Single | Contacts usage | Low power switching contacts |
Connections - terminals | Pins for printed circuit board | Net Weight | 0.026 lb(US) (0.012 kg) |
Contacts type and composition | 1 NC | Positive opening | With IEC 60947-5-1 appendix K |
Operating travel | 0.06 in (1.5 mm) NC changing electrical state)<br />0.2 in (4.3 mm) total travel) | Operating force | 2 N NC changing electrical state |
Mechanical durability | 500000 cycles | Contacts material | Gold flashed (Ag/Ni/Au) contacts |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Standards | IEC 60947-5-4<br />IEC 60947-5-1<br />CSA C22.2 No 14<br />IEC 60947-1<br />UL 508<br />JIS C8201-5-1<br />JIS C8201-1 |
Product Certifications | UL<br />BV<br />CSA<br />DNV<br />LROS (Lloyds register of shipping)<br />GL | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
