Product Model

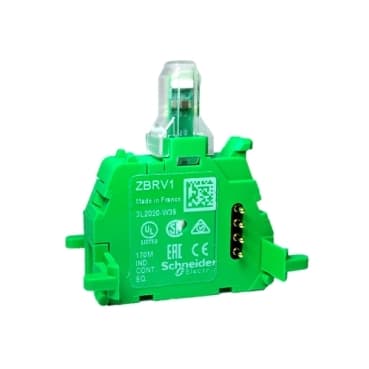

ZBRV1
Selling Points
- 1Compatible with all XB5 & XB4 actuators, reducing installation and maintenance costs.
- 2Suitable for demanding environments up to IP 69, operating from -40 to 70°C.
- 3Wireless and batteryless pushbuttons with a transmitter equipped with a fixing collar.
- 4Visual feedback option to easily check functioning, including illuminated actuators.
- 5Highest cybersecurity level with the possibility to change frequency.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5R | Product or Component Type | Visual feedback |
Device short name | XB5R | Light source colour | White |
Product compatibility | ZBRRA - receiver V2.2 and above)<br />ZBRRC - receiver V2.2 and above)<br />ZBRRD - receiver V2.2 and above)<br />ZBRA1 - antenna V3.3 and above)<br />ZBRN1 - wireless access point V3.32 and above)<br />ZBRN2 - wireless access point V3.32 and above) | Sale per indivisible quantity | 1 |
[Us] rated supply voltage | 3 V with battery | Signalling type | Blinking |
Light source | Protected LED | Bulb base | Integral LED |
Light block supply | Direct | Embedding Depth | 1.7 in (42 mm) |
CAD overall height | 1.5 in (37.4 mm) | CAD overall width | 1.0 in (24.2 mm) |
CAD overall depth | 1.6 in (39.6 mm) | Net Weight | 0.020 lb(US) (0.009 kg) |
Standards | IEC 60947-1<br />IEC 60947-5-1 | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -13…131 °F (-25…55 °C) | Relative humidity | 95 % 32…131 °F (0…55 °C) without condensation |
Mechanical durability | 50000 cycles | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Vibration resistance | 5 gn 11…500 Hz)IEC 60068-2-6<br />+/- 10 mm 2…11 Hz)IEC 60068-2-6 | Electromagnetic compatibility | Electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2<br />Electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2<br />Susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3<br />Susceptibility to electromagnetic fields - test level: 3 V/m conforming to IEC 61000-4-3<br />Susceptibility to electromagnetic fields - test level: 3 V/m (1000...6000 MHz) conforming to IEC 61000-4-3 |
Product Certifications | CSA<br />UL Listed<br />EAC |
Specifications may be subject to change without notice
