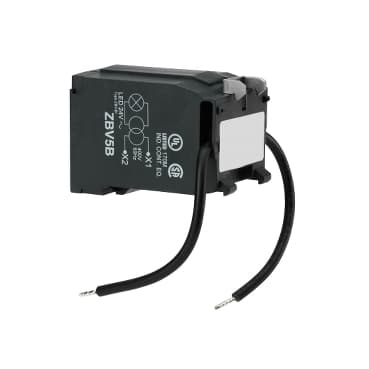

schneider ZBV5B

Selling Points

  • 1Works with 400V AC at 60 Hz.
  • 2Class I conforming to IEC 60536 for enhanced safety.
  • 3Easy installation with front mounting design.
  • 4Screw clamp terminals, 0.22 mm² without cable end, and surge withstand of 1 kV.
  • 5Designed for reliable operation in various lighting applications.
Product Details
ZBV5B
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Transformer block
Product Compatibility
Light block with integral LED 24 V AC
Device short name
ZBV
Sale per indivisible quantity
1
Connections - terminals
Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1<br />Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
[Us] rated supply voltage
400 V AC 50 Hz
CAD overall width
1.2 in (30 mm)
CAD overall height
1.3 in (33.6 mm)
CAD overall depth
1.8 in (46.6 mm)
Net Weight
0.20 lb(US) (0.09 kg)
Electrical shock protection class
Class I IEC 60536
Supply voltage limits
407…423 V
Surge withstand
1 kV IEC 61000-4-5
Electrical composition code
M6<br />P2
Device presentation
Basic element
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-13…158 °F (-25…70 °C)
IP degree of protection
IP20 IEC 60529
Standards
IEC 60947-5-4<br />CSA C22.2 No 14<br />IEC 60947-5-1<br />IEC 60947-1<br />IEC 60947-5-5<br />UL 508<br />JIS C 4520
Product Certifications
DNV<br />UL Listed<br />LROS (Lloyds register of shipping)<br />BV<br />CSA
Vibration resistance
2 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
15 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Resistance to electromagnetic fields
9.1 V/m (10 V/m) IEC 61000-4-3
Resistance to electrostatic discharge
6 kV in contact IEC 61000-4-2<br />8 kV in free air IEC 61000-4-2
Electromagnetic emission
Class B IEC 55011
